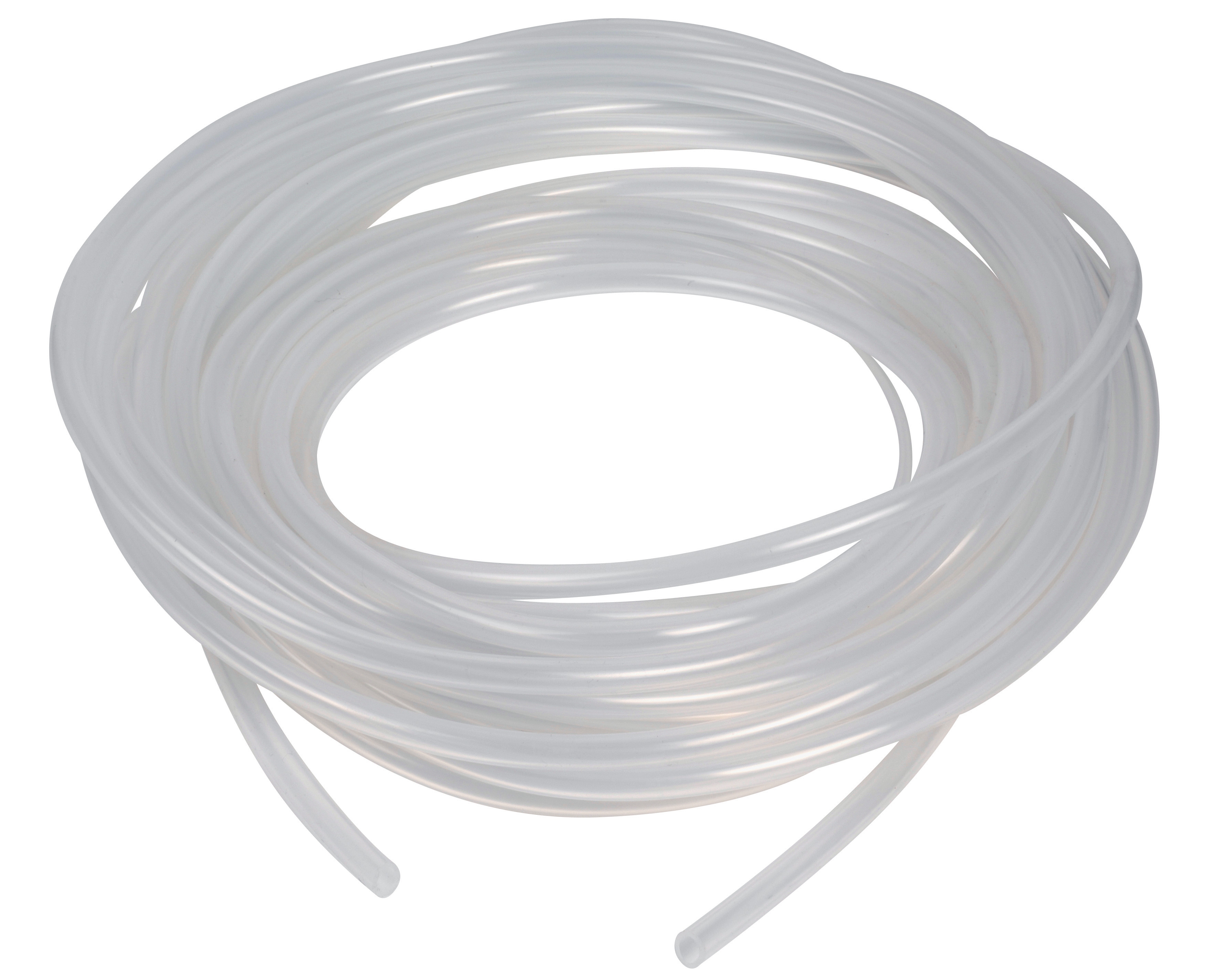

CBM Silicone hose 9X6 per meter

CBM silicone hose for air conditioning applications features 9 mm outer diameter and 6 mm inner diameter with operating range -50 to +200°C. Shore A hardness of 60 and food-contact certification suit HVAC and…

SKU 3G-CBM-00967

Also listed as: CLI 04571 · CLI-04571

Brand

CBM

Item

Silicone hose 9X6 per meter

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

material

silicone

dimensions

ø ext. 9 mm ø int. 6 mm le mètre

food contact

yes

hardness shA

60

inner diameter mm

6

outer diameter mm

9

temperature range C

-50 to +200

Datasheet Content

Produits alimentaires

                                                                        CLI04570 à 71
                                                                                                                                                                      +200
                                                                                                                                                                       - 50
                                                                                                                                                                              °C




                                                                                                                P jus de fruits            P alcools forts
                                                                          (EU) N° 10/2011
                                                                                                                P vins                     P lait

                                                                   Tube monocouche en silicone transparent de qualité alimentaire
APPLICATIONS                                                       et très souple. (60 shA)
Passage sans pression de liquides alimentaires et de
solutions aqueuses dont des acides et des bases

SECTEURS D’ACTIVITÉ
- Agroalimentaire
- Médical (matériels non invasifs)
- Laboratoires




                                                                       Aucun marquage


AVANTAGES                                                         RACCORDS                                                    TENUE CHIMIQUE
Le silicone est un matériau souple résistant à des                Raccords à embout cannelé ou à olive avec colliers à        Voir tableau pages 89 à 92 colonne G.
températures élevées. Le Vitryl peut ainsi être utilisé           bande, à tourillon ou à oreille(s). Le sertissage est à
jusque 200°C (240°C en pointe) et supporte des cycles             proscrire. Le montage sur tube lisse avec colliers est
répétés de stérilisation.                                         possible. Bien veiller avant montage à ce que l’embout ne
Le Vitryl peut également être utilisé à basse température         soit pas blessant pour le tube intérieur (cas notamment
tout en gardant sa souplesse.                                     des raccords mal ébavurés donc coupants).
Il est apte aux contacts alimentaires. Les alcools titrant
jusqu'à 50% vol. peuvent y être véhiculés.

                                                                                                 Transparent
                   mm                                         mm                                    25 m
      3           +/- 0,2        5             1             +/- 0,15                15           189782
      3           +/- 0,2        6            1,5            +/- 0,15                24           169283
      3           +/- 0,2        7             2             +/- 0,15                37           169022
      4          +/- 0,25        6             1             +/- 0,15                18           189795
      4          +/- 0,25        7            1,5            +/- 0,15                30           169309
      4          +/- 0,25        8             2             +/- 0,15                44           169035
      5          +/- 0,35        8            1,5            +/- 0,2                 36           189801
      6          +/- 0,35        9            1,5            +/- 0,25                41           189814
      6          +/- 0,35       10             2             +/- 0,25                58           169080
      6          +/- 0,35       12             3             +/- 0,25                98           169093
      7           +/- 0,4       10            1,5            +/- 0,25                46           189827
      7           +/- 0,4       11             2             +/- 0,25                66           169409
      8           +/- 0,4       11            1,5            +/- 0,25                52           169425
      8           +/- 0,4       12             2             +/- 0,25                73           189830
      8           +/- 0,4       14             3             +/- 0,25               120           169112
     10           +/- 0,4       14             2             +/- 0,25                87           189843
     10           +/- 0,4       16             3             +/- 0,25               132           169125
     12           +/- 0,5       16             2             +/- 0,3                102           169154
     12           +/- 0,5       17            2,5            +/- 0,3                132           189856
     15           +/- 0,5       21             3             +/- 0,3                197           189869
     20           +/- 0,7       27            3,5            +/- 0,36               300           189885

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy CBM silicone hose 9X6 worldwide?

3G Electric is an authorised distributor of CBM silicone hose 9X6 per meter. We handle worldwide delivery, customs clearance, and logistics. Lead time on request — contact us for availability and quote.

What is the operating temperature range of this silicone hose?

The CBM silicone hose 9X6 operates from -50°C to +200°C, making it suitable for extreme HVAC and beverage system applications requiring temperature resistance.

Is this silicone hose food-contact certified?

Yes, the CBM silicone hose 9X6 is food-contact certified and features Shore A hardness of 60, making it ideal for beverage systems and food-grade HVAC applications.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
