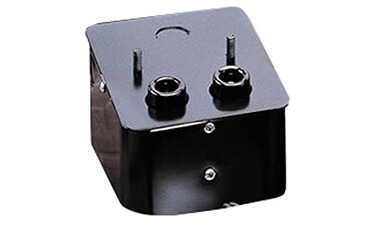

Allanson 444-655-G Ferromagnetic Service Replacement Transformer for Power Flame
The Allanson 3G-OTH-03212 is a ferromagnetic service replacement ignition transformer for Power Flame burners. It features a large can size, mid-point grounding, and a Rajah connector for the high-voltage terminal…
SKU 3G-OTH-03212
Also listed as: 444655 G · 444655-G
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 3G-OTH-03212 is a ferromagnetic service replacement ignition transformer for Power Flame burners. It features a large can size, mid-point grounding, and a Rajah connector for the high-voltage terminal. The transformer operates on a 240V, 60Hz input, delivering a secondary voltage of 10,000 volts with a current of 23mA, and is designed for oil applications with an internal junction box.
Frequently Asked Questions
What is the Allanson 444-655-G transformer used for?
The Allanson 444-655-G is a ferromagnetic service replacement ignition transformer designed for constant duty in commercial and industrial oil burners, specifically Power Flame models. It provides a reliable 10,000 V secondary voltage at 23 mA to ignite the oil-air mixture in the burner.
What are the specifications of the Allanson 444-655-G?
The Allanson 444-655-G operates at 240 V input, 60 Hz, with a secondary voltage of 10,000 V RMS and 23 mA secondary short circuit current. It features mid-point grounding, a large can size, internal junction box, and Rajah connector for the HV terminal. Storage temperature range is -40 to +80 °C.
Where to buy the Allanson 444-655-G in Singapore?
You can source the Allanson 444-655-G through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this service replacement transformer for Power Flame burners.
How to install the Allanson 444-655-G transformer?
Ensure the transformer is mounted securely with the correct air gap of 1/8 to 3/16 inches. Connect the 240 V input to the primary terminals and the high-voltage Rajah connector to the burner ignition electrode. Verify mid-point grounding per local codes. Always disconnect power before installation.
