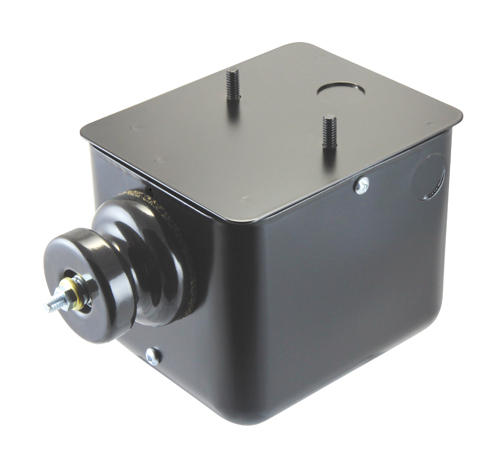

Allanson 542-PF-G Ferromagnetic Ignition Transformer for Power Flame
Allanson’s Single Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial gas applications.
SKU 3G-OTH-03304
Also listed as: 542PFG · 542 PF G
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s Single Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial gas applications.
Frequently Asked Questions
What is the Allanson 3G-OTH-03304 ferromagnetic ignition transformer used for?
The Allanson 3G-OTH-03304 is a single-pole ferromagnetic ignition transformer designed for constant duty in commercial, residential, and industrial gas applications. It provides a reliable ignition source specifically for Power Flame burners, delivering a secondary voltage of 10000 V at 23 mA to ensure consistent spark ignition.
What are the specifications of the Allanson 3G-OTH-03304 transformer?
The Allanson 3G-OTH-03304 operates at 120 V input, 60 Hz, with a secondary voltage of 10000 V RMS and a secondary short circuit current of 23 mA. It has a single pole, one end ground configuration, an internal junction box, and a 1/4-20 stud HV terminal. Operating temperature range is -30 to +40 °C.
Where to buy the Allanson 3G-OTH-03304 in Singapore?
You can source the Allanson 3G-OTH-03304 ferromagnetic ignition transformer through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Power Flame-compatible transformer.
How to install the Allanson 3G-OTH-03304 ignition transformer?
Install the Allanson 3G-OTH-03304 by mounting it securely with the one end ground connection. Ensure the input voltage is 120 V at 60 Hz and the loading air gap is set between 1/16 and 1/8 inches. Always follow the manufacturer's guidelines and local electrical codes for safe operation.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson ignition transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
