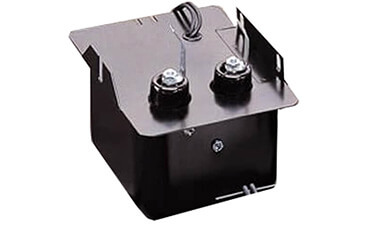

Allanson 2744-654 Ferromagnetic Ignition Transformer for Clean Burn
The Allanson 2744-654 is a ferromagnetic ignition transformer designed for Clean Burn burners. It operates with a 240V input at 60Hz, delivering a secondary voltage of 10,000 volts with a current of 23mA. This small…
SKU 3G-OTH-03204
Also listed as: 2744654 · 2744 654
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 2744-654 is a ferromagnetic ignition transformer designed for Clean Burn burners. It operates with a 240V input at 60Hz, delivering a secondary voltage of 10,000 volts with a current of 23mA. This small can series transformer features mid-point grounding, an end hinge, and an 8-32 threaded post HV terminal.
Frequently Asked Questions
What is the Allanson 2744-654 ferromagnetic ignition transformer used for?
The Allanson 2744-654 is a ferromagnetic ignition transformer designed for constant duty in commercial and industrial oil burners, specifically Clean Burn models. It provides a reliable ignition source by generating a 10,000-volt secondary output at 23 mA to ignite fuel oil.
What are the specifications of the Allanson 2744-654 ignition transformer?
The Allanson 2744-654 operates at 240 V input, 60 Hz, with a secondary voltage of 10,000 volts and 23 mA short circuit current. It features mid-point grounding, an end hinge, and an 8-32 threaded post HV terminal. The can size is small series, and it is designed for Clean Burn burners.
Where to buy the Allanson 2744-654 ignition transformer in Singapore?
You can source the Allanson 2744-654 ignition transformer through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Clean Burn compatible transformer.
How to install the Allanson 2744-654 ferromagnetic ignition transformer?
Install the Allanson 2744-654 by mounting it securely with the end hinge, connecting the 240 V input to the primary terminals, and attaching the high-voltage lead to the 8-32 threaded post. Ensure the loading air gap is set between 1/8 and 3/16 inches for proper spark. Follow the burner manufacturer's wiring diagram.
