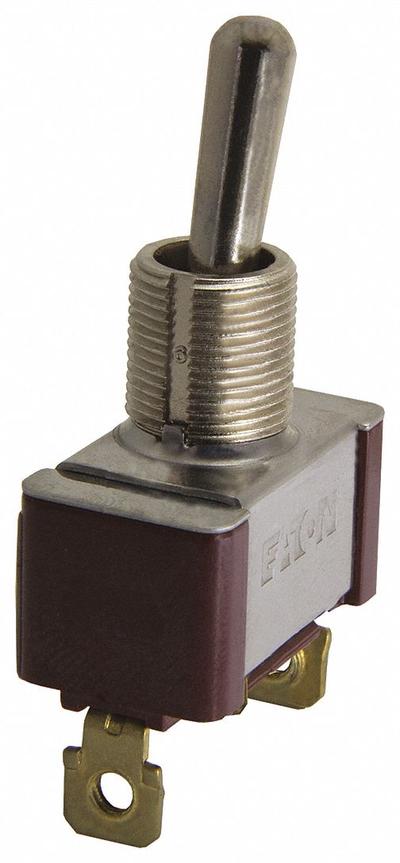

EATON Toggle Switch: 3 Position, 2 Connections, SPST, Screw Terminals Connection - Panel-Mount Toggle Switches
EATONPanel-Mount Toggle Switches

EATON Toggle Switch: 3 Position, 2 Connections, SPST, Screw Terminals Connection

The EATON 7500 Series Toggle Switch (MPN 7546K36) is a panel-mount, single-pole single-throw (SPST) switch with a 3-position On/None/Off configuration and screw terminals. It is rated for 20 A at 125 V AC and 3/4 hp…

SKU 3G-OTH-32831

Brand
EATON
Item
Toggle Switch: 3 Position, 2 Connections, SPST, Screw Terminals Connection
Category
Panel-Mount Toggle Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
7546K36
Series
7500
Type
SPST, Screw Terminals Connection
Horsepower
3/4 hp @ 250V AC
Connections
2
AC Contact Rating
20 A @ 125 V
Switch Function Configuration
On/None/Off
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON 7500 Series Toggle Switch (MPN 7546K36) is a panel-mount, single-pole single-throw (SPST) switch with a 3-position On/None/Off configuration and screw terminals. It is rated for 20 A at 125 V AC and 3/4 hp at 250 V AC, with 2 connections.

Used in

Common applications for EATON
Industrial control panels — Eaton M22 flush push buttons for momentary machine start/stop commands
Motor control centers — Eaton NEMA reversing starters with electronic overloads for conveyor belt direction control
HVAC systems — Eaton definite purpose starters with thermal overloads for compressor and fan motor protection
Process automation — Eaton SL7 tower lights with IP66 bases for visual status indication in wet environments
Machine tool signaling — Eaton 10250T LED pilot lights with push-to-test for operator panel status lamps
Access control — Eaton M22 keyed selector switches for equipment mode selection in secured areas

EATON Products

3G Electric supplies EATON panel-mount toggle switches. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
