EATON Toggle Switch: 3 Position, 4 Connections, DPST, Solder Lug Connection - Panel-Mount Toggle Switches
EATONPanel-Mount Toggle Switches

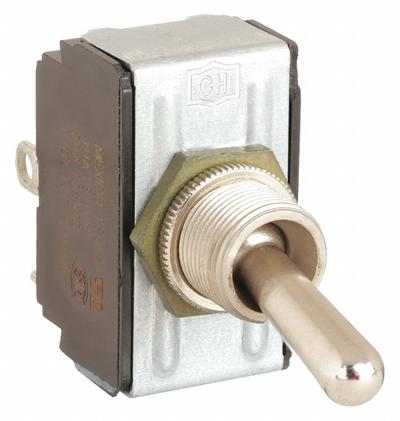

EATON Toggle Switch: 3 Position, 4 Connections, DPST, Solder Lug Connection

The EATON Toggle Switch is a panel-mount, 3-position DPST switch from the 7800 Series (MPN 7803K11). It features an On/None/Off switch function configuration, a 20 A @ 125 V AC contact rating, and 1 hp horsepower…

SKU 3G-OTH-34105

Brand
EATON
Item
Toggle Switch: 3 Position, 4 Connections, DPST, Solder Lug Connection
Category
Panel-Mount Toggle Switches
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

EATON
Manufacturer Part Number
7803K11
Series
7800
Type
DPST, Solder Lug Connection
Horsepower
1 hp
Connections
4
AC Contact Rating
20 A @ 125 V
Switch Function Configuration
On/None/Off
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

EATON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON Toggle Switch is a panel-mount, 3-position DPST switch from the 7800 Series (MPN 7803K11). It features an On/None/Off switch function configuration, a 20 A @ 125 V AC contact rating, and 1 hp horsepower rating. The switch includes 4 connections with solder lug termination.
