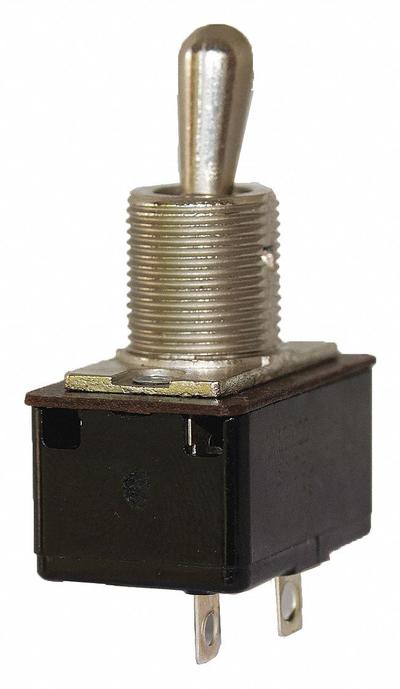

EATON Toggle Switch: 3 Position, 2 Connections, SPST, Solder Lug Connection - Panel-Mount Toggle Switches

EATONPanel-Mount Toggle Switches

EATON Toggle Switch: 3 Position, 2 Connections, SPST, Solder Lug Connection

The EATON 7500 Series Toggle Switch (MPN 7501K13) is a panel-mount, single-pole single-throw (SPST) switch with a 3-position On/None/Off configuration. It features a 20 A @ 125 V AC contact rating and a 3/4 hp @ 250V…

SKU 3G-OTH-35560

Brand

EATON

Item

Toggle Switch: 3 Position, 2 Connections, SPST, Solder Lug Connection

Category

Panel-Mount Toggle Switches

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

EATON

Manufacturer Part Number

7501K13

Series

7500

Type

SPST, Solder Lug Connection

Horsepower

3/4 hp @ 250V AC

Connections

2

AC Contact Rating

20 A @ 125 V

Switch Function Configuration

On/None/Off

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

EATON Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The EATON 7500 Series Toggle Switch (MPN 7501K13) is a panel-mount, single-pole single-throw (SPST) switch with a 3-position On/None/Off configuration. It features a 20 A @ 125 V AC contact rating and a 3/4 hp @ 250V AC horsepower rating, with solder lug connections for two connections.
