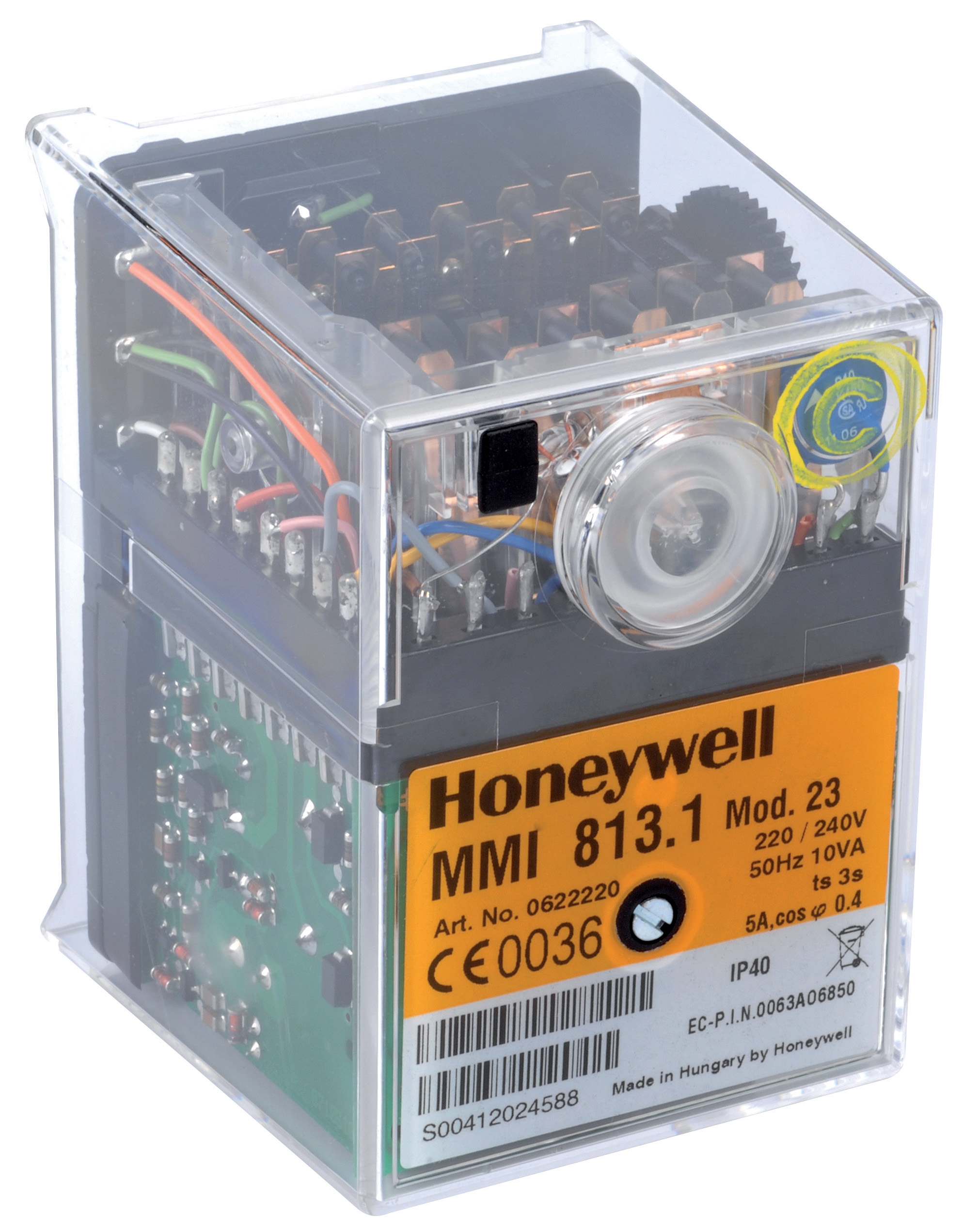

Relay MMI 813.23

Name: Relay MMI 813.23
Brand: Honeywell
SKU: cbm-rel25114-relay-mmi-813-23-rel-relays-and-cells-1

On RequestBurner Controls

Price on request — send us an enquiry for current pricing.

Relay MMI 813.23

Minimum order: 1 unit
Lead time: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.

Technical specifications

type	burner control unit
model	MMI 813.1
total load	5A, cos φ 0.4
flame detector	ionization probe or IR oscillation detector IRD 1020
mounting position	any
output 3 max load	2A, cos φ 0.2
protection degree	IP 44
output 4B max load	2A, cos φ 0.4
output 5 6C max load	1A, cos φ 0.4
amplifier sensitivity	1 µA
ionization current min	5 µA

Frequently asked questions

Where can I buy the Honeywell MMI 813.23 burner control in your region?+

3G Electric stocks and sources the Honeywell MMI 813.23 (REL25114) for delivery to your location. We handle customs documentation, logistics, and USD invoicing. Lead time on request.

What flame detection methods does the Honeywell MMI 813.23 support?+

The MMI 813.23 is compatible with ionization probe or IR oscillation detector (IRD 1020). Amplifier sensitivity is 1 µA with minimum ionization current of 5 µA, enabling reliable flame monitoring for burner safety applications.

What is the output capacity of the Honeywell MMI 813.23?+

The MMI 813.23 delivers maximum 5A total load at 0.4 cos φ. Output 3 handles 2A at 0.2 cos φ, Output 4B/5/6C handle 2A and 1A respectively at 0.4 cos φ. IP 44 protection suits any mounting position.
