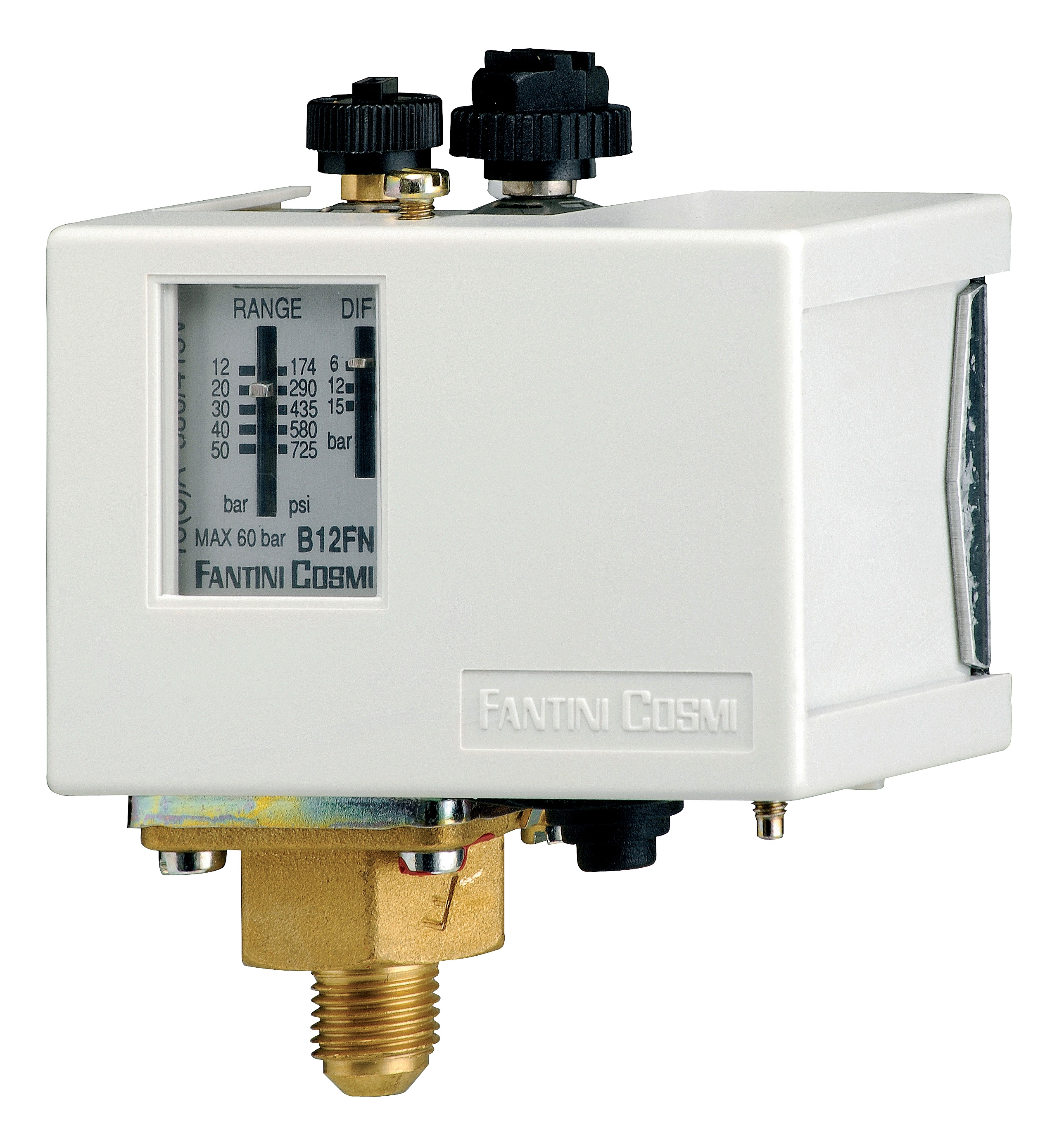

Fantini Cosmi Setting pressure switch B12FMN 12-50 bar

FAN04240 à 56 Pressure switches up to 300 bar with adjustable differential Pressure switches for control and regulation of all fluids and non-explosive gases. Suitable for compression plants, boilers, tanks, autoclaves, ventilation plants, lubrication plants and in general whenever a pressure up to 300 bar must be controlled. 88 49 59 105 Range Differential Sensitive element Connection Protection Availability max. pressure G/14 degree bar bar bar B12FN 12 ÷ 50 6 ÷ 15 60 threaded IP40 in stock B12GN 25 ÷ 150 12 ÷ 40 180 threaded IP40 in stock B12HN 60 ÷ 300 40 ÷ 80 350 threaded IP40 in stock WITH BLOCKING AND MANUAL RESET B1FMN 12 ÷ 50 6 ÷ 15 60 threaded IP40 in stock B12GMN 25 ÷ 150 12 ÷ 40 180 threaded IP40 in stock B12HMN 60 ÷ 300 40 ÷ 80 350 threaded IP40 in stock WATERPROOF CASING EXECUTION 100 4,5 123 47 B12FNY 12 ÷ 50 6 ÷ 15 60 threaded IP65 in stock B12GNY 25 ÷ 150 12 ÷ 40 180 threaded IP65 in stock B12HNY 60 ÷ 300 40 ÷ 80 350 threaded IP65 in stock 1 Bar = 100Kpa *The differential must be deducted from the range value. ELECTRICAL FEATURES Snap action SPDT microswitch, contacts in EXAMPLE OF ELECTRICAL WIRING AgCdO. P 1 4 2 1 2 4 Nominal insulation tension Ui 415V~ R - RESET Continuous duty nominal current Ith 16A 0 - STOP Operating nominal current Ie 220V- 380/415V~ Resistive load AC-1 - 16A P Inductive load AC-3 - 6A A2 Continuous current DC-13 0,2A - 1 4 2 A1 HOMOLOGATION AND STANDARDS Complies with EN 60947-4-1 standards. INSTALLATION Direct installation on the pipe. MOUNTING MODEL If these devices are used as control pressostats (pressure lack), verify that maximum pres- N° 2 fori M4 sure does not exceed maximum supported sensitive element pressure. Possibility of mounting on metallic clamp, exept for the waterproof casing versions. 35 mm OPERATION When pressure increases: 1-2 opens, 1-4 closes. In case of fluid temperatures higher than the maximum allowed, connect the pressure switch to the pipe by inserting a metallic spiral between the pressure switch and the pipe to facilitate heat dispersion. In the pressure switch with blocking and manual reset at maximum pressure, the reset takes place when the pressure is below the value set on differential. FEATURES Piston sensitive element, brass connection. Metallic frame. Cover in shockproof thermoplastic material. Output connections with PVC cable gland. Adjustable differential. Threaded connection G 1/4. Maximum temperature of the controlled fluid: 80°C. Pressure switch body admissible temperature: 60°C. Storage and transport temperature: -35 ÷ 60°C. Unit weight: 0,47 Kg B12FN-B12GN. Unit weight: 0,46 Kg B12HN.
