Datasheet Content
FAN04102 à 16

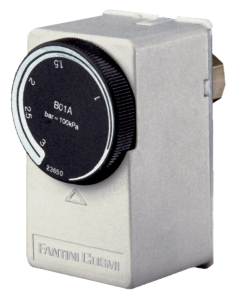

Pressure switches up to 15 bar
with non-adjustable differential
Pressure switches for fluids and inert gases. Suitable for compressors, autoclaves, control of lubrication
circuits, steam boilers, irrigation systems etc.
CH17
21
G 1/4
70
15,5
8 40 23 37 4
Range Differential* Sensitive element Connection Protection Availability
max. pressure G/14 degree
bar bar bar
B01A 0,7 ÷ 3 0,4 6 flange IP40 in stock
B01B 2 ÷ 5,5 0,6 7 flange IP40 in stock
B01C 3÷7 0,6 9 flange IP40 in stock
B01D 4 ÷ 15 1 18 flange IP40 in stock
B01A4 0,7 ÷ 3 0,4 6 threaded IP40 on request
B01B4 2 ÷ 5,5 0,6 7 threaded IP40 on request
B01C4 3÷7 0,6 9 threaded IP40 on request
B01D4 4 ÷ 15 1 18 threaded IP40 on request
1 Bar = 100Kpa / * The differential must be deducted from the range value.
ELECTRICAL FEATURES
Snap action SPDT microswitch with AgCdO contacts.
EXAMPLE OF ELECTRICAL WIRING
P
2 4 1 R N
S
T 1
N
Nominal insulation tension Ui 380V~
Continuous duty nominal current Ith 15A 1 3 5 13
2 4
98
Operating nominal current Ie 220V- 250V~ 380V~
96 14 R - RESET
Resistive load AC-12 - 10A 10A 97 95 0 - STOP
Inductive load AC-15 - 0,2A 1,5A 97 95
Continuous current DC-13 0,2A - - 98 96
P
2 4 6
A2
2 4 1 A1
1
HOMOLOGATION AND STANDARDS
Complies with EN 60947-5-1 standards.
INSTALLATION
Direct installation on the pipe.
In case of fluid temperatures higher than the maximum allowed, connect the pressure switch to the pipe by inserting a metallic
spiral between the pressure switch and the pipe to facilitate heat dispersion.
OPERATION
When it is reached the blocking value of the pressure: 1-2 opens, 1-4 closes.
If these devices are used as control pressostats (pressure lack), verify that maximum pressure does not exceed maximum
supported sensitive element pressure.
FEATURES
Elements in contact with the fluid are in stainless steel, laser welded.
Base, cover and knob in V0 self-extinguishing, shockproof thermoplastic material.
Output connections with PVC cable gland.
Maximum temperature of the controlled fluid: 120 °C.
Pressure switch body admissible temperature: -35 ÷ 80°C.
Storage and transport temperature: -35 ÷ 80°C.
Unit weight: 0,15 Kg.
a)
. CEATSICALIONG € TESTING
CSI SpA
Sede Legale 9
20030 Senago - MI - 1
Cascina Traversagna 2?
Direzione, Uffici e Laborato Se
20021 Bollate - Mil - 1 cE RT
Vials Lombardia 20
Tel. +39 02 383301
Fax +39 02 3503940
WWM.csI-spa.com
#2... CERTIFICATO CE DI CONFORMITA’ DEL TIPO
Magee Aen TYPE EC CERTIFICATE OF CONFORMITY
Visto il Fascicolo Tecnico/Rreferring to the Technical File
n° 668/15 del/dated 25/02/2015
si certifica che la Societa/we certify that the Company
FANTINI COSMI S.p.A.
Via dell’Osio, 6 - 20090 CALEPPIO DI SETTALA (MI) - ITALY
ha realizzato il seguente Tipo di Insieme in pressione che soddisfa i Requisiti Essenziali di Sicurezza
dell’Allegato | e le procedure del Modulo B, Allegato III, della Direttiva 97/23/CE
has realized the following Type of pressure Assembly that meets the Essential Safety Requirements of Annex | and
the procedures of Module B, Annex Ill, of the 97/23/EC Directive
PRESSOSTATI DI REGOLAZIONE
Serie BOXXX, B1XXXX e VARIANTI “4”, RI, RN, Y
ADJUSTABLE PRESSURE SWITCHES
Series BO1XXX, B1XXXX and VARIANTS “4”, Rl, RN, Y
Campo di taratura/set range: PSmin -0,82 barg; PSmax 300 barg
Gruppo Fluido/Fluid Group 2 - Categoria/Ccategory IV
26/02/2015 Th 25/02/2025
Prima emissione Ultima emissione Scadenza
First issue Latest issue Expiring
Mod. M103
| Registrazione numero/Registration number PED/0497/2934/15
bol feoea
o—™~
ORUPFO ot Ing. R. Gatti uae:
Ima we > Csi __! | ut
an
Amm, DelegatosManag ing Director _ a
| Pagina/page
ioe
SEIT OF CS
Ws CORD AN, REMAIN HS
--- PAGE BREAK ---
S CERTIFICATE REMAINS THE PROPERT
\csI
Registrazione numero/Registration number PED/0497/2935/15
CERTIFICATO DI CONFORMITA’ UE
EU CERTIFICATE OF CONFORMITY
Visto il Fascicolo Tecnico/Referring to the Technical File
n° 668/15 del/dated 25/02/2015
si certifica che la Societd/we certify that the Company
FANTINI COSMI S.p.A.
Via dell'Osio, 6 - 20090 CALEPPIO DI SETTALA (MI) - ITALY
ha implementato e mantiene un Sistema Qualita che garantisce la conformitda al Tipo - Certificato
CSI PED/0497/2934/15 - e ai requisiti ad esso applicabili, secondo la Procedura del Modulo D -
Allegato Ill della Direttiva 2014/68/UE
has implemented and maintains a quality system in compliance to the Type - Certificate CS! PED/0497/2934/15 -
and to the requirements which apply to it, according to the Procedure Module D - Annex Ill of fhe 2014/68/EU
Directive
PRESSOSTATI DI REGOLAZIONE
Serie BO1XXX, BIXXXX e VARIANTI “4”, RL RN, Y
ADJUSTABLE PRESSURE SWITCHES
Series BOIXXX, BIXXXX and VARIANTS "4", RI, RN, Y
ll Fabbricante é autorizzato ad apporre sull'Attrezzatura in pressione di cui sopra,
dopo la marcatura CE, il numero di identificazione dell’ Organismo Notificato.
The Manufacturer is authorized to provide the above pressure Equipment with the CE marking,
followed by the Notified Body identification number.
26/02/2015 12/06/2018 // 25/02/2021
Prima emissione Rinnovo Ultima emissione Scadenza
First issue Renewal Latest issue Expiry
Ing. P. Fumagalli als
B.U. Prodotto/Proguct
PRD N° 032B
Signatory of EA, IAF and ILAC 0497
Mutual Recognition Agreement
ACCREDIA %
GQ002 REV.00
REA MI 1466310
R
0 Senago (MI) | Cascina Tra gna 21
@legalmail.it | info@c om | www.csi-spa.com
