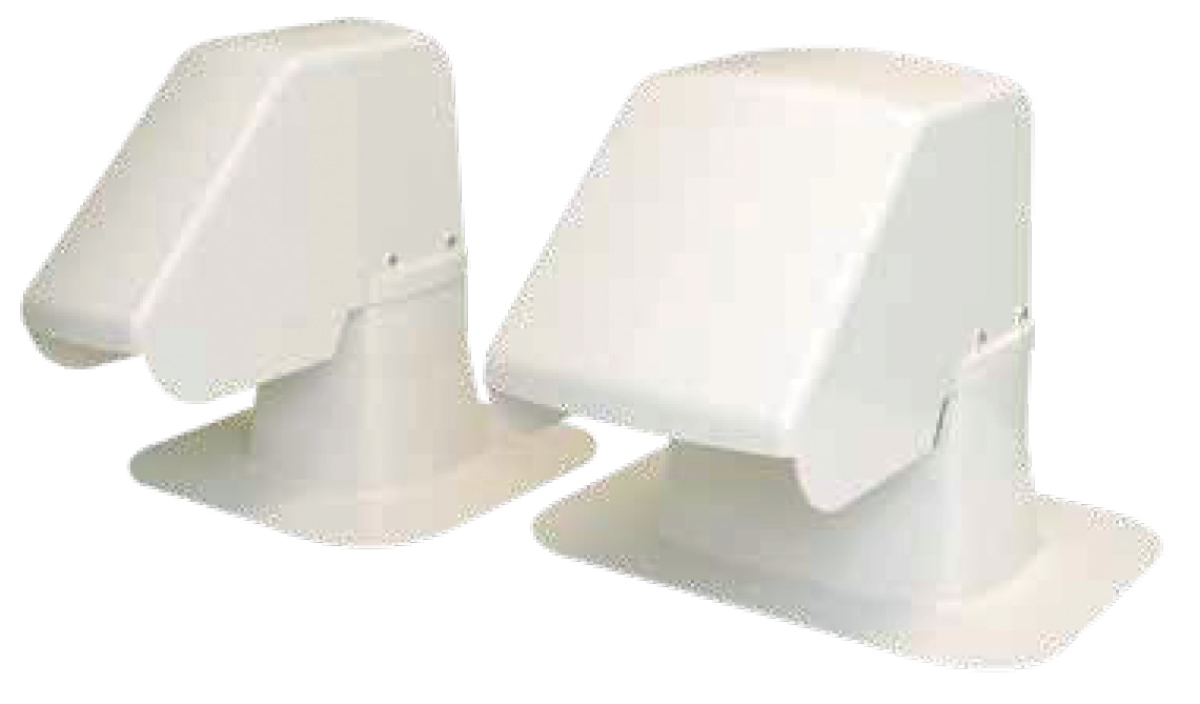

CBM Roof inlet 125x250mm

CBM roof inlet for HVAC systems measures 125 x 250 mm with external dimensions of 360 x 487 mm. Designed for commercial air conditioning installations requiring compact rooftop air intake solutions. Ships one unit…

SKU 3G-CBM-01036

Also listed as: CLI 04692 · CLI-04692

Brand

CBM

Item

Roof inlet 125x250mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

packing

1 pc/box

dimensions

125 X 250 mm

inside dimensions mm

125 x 250

outside dimensions mm

360 x 487

Datasheet Content

Entrée de toit CLI04690 à 92

Entrée de toit
• La solution idéale pour protéger votre câblage et raccorder votre groupe en toiture proprement !

                                                                      CLI04690                                      3G-CBM-01036

                                           F                                       B        D                                  B     D

                                                                           A
                                                                                                                          A

                                                                           C
                     E                                                                                                    C

 Model                                                   CLI04690                                              3G-CBM-01036

 Inside dimensions: A x B                       125 x 125 mm / 4.92 x 4.92”                           125 x 250 mm / 4.92 x 9.84"
 Outside dimensions: C x D                     360 x 360 mm / 14.17 x 14.17"                         360 x 487 mm / 14.17 x 19.17”
 Outside dimensions: E x F                     522 x 415 mm / 20.55 x 16.34"                         527 x 420 mm / 20.75 x 16.54"
 Packing                                                 1 pc/box                                              1 pc/box

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM CLI04692 roof inlet worldwide?

Order the CBM CLI04692 roof inlet direct from 3G Electric, an authorized distributor. We source and handle worldwide delivery, customs clearance, and logistics to your facility.

What are the dimensions of the CBM CLI04692 roof inlet?

The CBM CLI04692 has internal dimensions of 125 x 250 mm and external dimensions of 360 x 487 mm. It ships one unit per box, suitable for compact rooftop HVAC installations.

Is the CBM CLI04692 suitable for commercial air conditioning systems?

Yes. The CBM CLI04692 is designed for commercial rooftop AC applications requiring compact air intake solutions. Its 125 x 250 mm intake opening fits standard HVAC ducting on industrial and commercial buildings.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
