CBMHVAC & Refrigeration

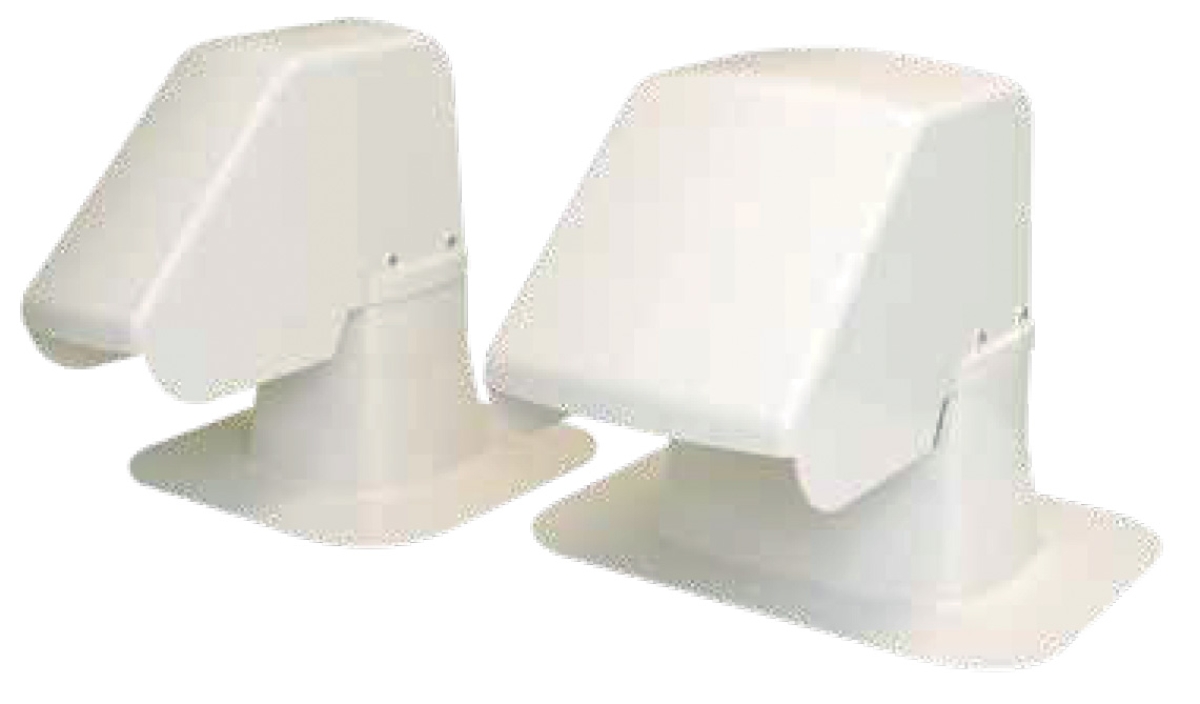

CBM Roof entry 125x125mm

CBM roof entry for air conditioning systems features a 125×125 mm opening with 360×360 mm outer dimensions, enabling efficient ductwork penetration through roofing structures in HVAC installations.

SKU 3G-CBM-01035

Also listed as: CLI 04690 · CLI-04690

Brand

CBM

Item

Roof entry 125x125mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

packing

1 pc/box

dimensions

125 X 125 mm

inside dimensions A B

125 x 125 mm

outside dimensions C D

360 x 360 mm

outside dimensions E F

522 x 415 mm

Datasheet Content

Entrée de toit 3G-CBM-01035 à 92

Entrée de toit
• La solution idéale pour protéger votre câblage et raccorder votre groupe en toiture proprement !

                                                                      3G-CBM-01035                                      CLI04692

                                           F                                       B        D                                  B     D

                                                                           A
                                                                                                                          A

                                                                           C
                     E                                                                                                    C

 Model                                                   3G-CBM-01035                                              CLI04692

 Inside dimensions: A x B                       125 x 125 mm / 4.92 x 4.92”                           125 x 250 mm / 4.92 x 9.84"
 Outside dimensions: C x D                     360 x 360 mm / 14.17 x 14.17"                         360 x 487 mm / 14.17 x 19.17”
 Outside dimensions: E x F                     522 x 415 mm / 20.55 x 16.34"                         527 x 420 mm / 20.75 x 16.54"
 Packing                                                 1 pc/box                                              1 pc/box

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

CBM roof entry for air conditioning systems features a 125×125 mm opening with 360×360 mm outer dimensions, enabling efficient ductwork penetration through roofing structures in HVAC installations.

Frequently Asked Questions

Where can I buy the CBM CLI04690 roof entry worldwide?

Purchase the CBM CLI04690 from 3G Electric, an authorized distributor. We handle worldwide delivery, logistics, and customs clearance. Contact us for pricing and lead times on this 125×125 mm roof entry unit.

What is the lead time for the CBM CLI04690 roof entry?

Lead time on request. The CBM CLI04690 roof entry is available to order through 3G Electric. We manage logistics and delivery globally. Contact our team with your project timeline for accurate shipping estimates.

What are the outer dimensions of the CBM CLI04690 roof entry?

The CBM CLI04690 features a 125×125 mm internal opening with 360×360 mm outer dimensions (C×D). The complete unit measures 522×415 mm (E×F), enabling integration into standard HVAC roof penetration installations.
