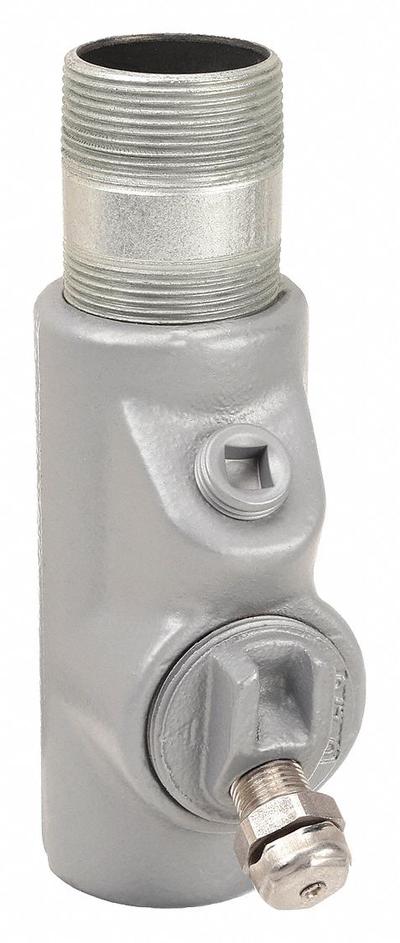

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 2 in Trade Size, Male - Vertical Sealing Fittings with Drain - 25% Fill
APPLETON ELECTRICVertical Sealing Fittings with Drain - 25% Fill

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 2 in Trade Size, Male

The APPLETON ELECTRIC Sealing Fitting with Drain is a vertical sealing fitting with drain designed for 25% fill applications. This iron fitting features a 2 in FNPT x 2 in MNPT threaded connection with male NPT…

SKU 3G-OTH-05992

Brand
APPLETON ELECTRIC
Item
Sealing Fitting with Drain - Vertical: Iron, 2 in Trade Size, Male
Category
Vertical Sealing Fittings with Drain - 25% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
EYD-66
Type
- Vertical: Iron, Male
Material
Iron
Overall Lg
6 1/4 in
Standards
CSA C22.2 No 30
Trade Size
2 in
Thread Type
NPT
Thread Gender
Male
Threaded Ends
Male to Female
Connection Type
Threaded
Ends - Hazardous Fittings
2 in FNPT x 2 in MNPT
Hazardous Location Rating
Class III
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC Sealing Fitting with Drain is a vertical sealing fitting with drain designed for 25% fill applications. This iron fitting features a 2 in FNPT x 2 in MNPT threaded connection with male NPT threads and a male-to-female configuration. It is rated for Class III hazardous locations and complies with CSA C22.2 No 30 standards, with an overall length of 6 1/4 in (MPN EYD-66).
