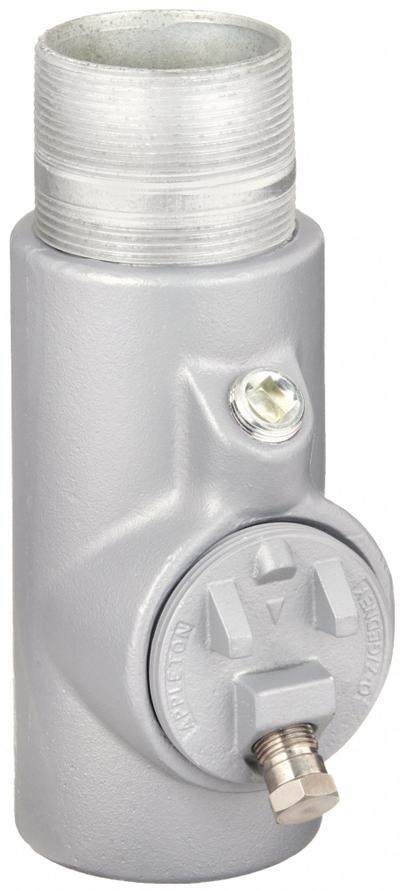

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 4 in Trade Size, Male - Vertical Sealing Fittings with Drain - 25% Fill
APPLETON ELECTRICVertical Sealing Fittings with Drain - 25% Fill

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 4 in Trade Size, Male

The APPLETON ELECTRIC Sealing Fitting with Drain is a vertical sealing fitting with drain designed for 25% fill applications. This iron fitting features 4 in FNPT x 4 in MNPT threaded male-to-female NPT connections…

SKU 3G-OTH-05990

Brand
APPLETON ELECTRIC
Item
Sealing Fitting with Drain - Vertical: Iron, 4 in Trade Size, Male
Category
Vertical Sealing Fittings with Drain - 25% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
EYD-106
Type
- Vertical: Iron, Male
Material
Iron
Overall Lg
9 3/4 in
Standards
UL 886
Trade Size
4 in
Thread Type
NPT
Thread Gender
Male
Threaded Ends
Male to Female
Connection Type
Threaded
Ends - Hazardous Fittings
4 in FNPT x 4 in MNPT
Hazardous Location Rating
Class I, Division 1 and 2, Groups C, D
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The APPLETON ELECTRIC Sealing Fitting with Drain is a vertical sealing fitting with drain designed for 25% fill applications. This iron fitting features 4 in FNPT x 4 in MNPT threaded male-to-female NPT connections and is UL 886 listed. It is rated for Class I, Division 1 and 2, Groups C and D hazardous locations.

Used in

Common applications for APPLETON ELECTRIC
Oil and gas refineries — Appleton Electric EDSC21MC2 manual motor switch for controlling pumps in Class I, Division 1 areas
Chemical processing plants — Appleton Electric AEAB13420C hazardous location circuit breaker for motor protection in volatile environments
Pharmaceutical manufacturing — Appleton Electric FSK-1VDR weatherproof cover for duplex receptacles in washdown zones
Wastewater treatment facilities — Appleton Electric UNY250R-A aluminum conduit union for corrosion-resistant connections
Mining operations — Appleton Electric EDSC277-SA tandem 2-gang box for junction points in hazardous dust locations
Food and beverage processing — Appleton Electric JBK-75 iron cover for conduit access fittings in wet or dusty areas

APPLETON ELECTRIC Products

3G Electric supplies APPLETON ELECTRIC vertical sealing fittings with drain - 25% fill. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
