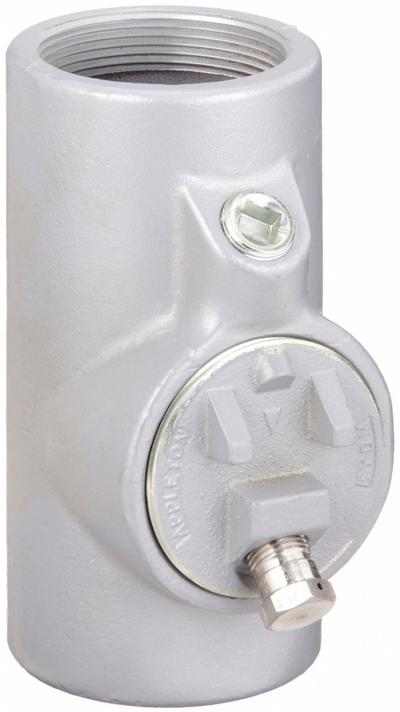

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 3 1/2 in Trade Size, Female - Vertical Sealing Fittings with Drain - 25% Fill
APPLETON ELECTRICVertical Sealing Fittings with Drain - 25% Fill

APPLETON ELECTRIC Sealing Fitting with Drain - Vertical: Iron, 3 1/2 in Trade Size, Female

The Appleton Electric EYD-9 is a vertical sealing fitting with drain, designed for 25% fill applications in hazardous locations. This iron fitting features 3-1/2 in FNPT female-to-female threaded ends with NPT…

SKU 3G-OTH-06002

Brand
APPLETON ELECTRIC
Item
Sealing Fitting with Drain - Vertical: Iron, 3 1/2 in Trade Size, Female
Category
Vertical Sealing Fittings with Drain - 25% Fill
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

APPLETON ELECTRIC
Manufacturer Part Number
EYD-9
Type
- Vertical: Iron, Female
Material
Iron
Overall Lg
9 3/16 in
Standards
UL 886
Trade Size
3 1/2 in
Thread Type
NPT
Thread Gender
Female
Threaded Ends
Female to Female
Connection Type
Threaded
Ends - Hazardous Fittings
3-1/2 in FNPT x 3-1/2 in FNPT
Hazardous Location Rating
Class I, Division 1 and 2, Groups C, D
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

APPLETON ELECTRIC Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Appleton Electric EYD-9 is a vertical sealing fitting with drain, designed for 25% fill applications in hazardous locations. This iron fitting features 3-1/2 in FNPT female-to-female threaded ends with NPT threads, and is UL 886 listed for use in Class I, Division 1 and 2, Groups C and D environments.
