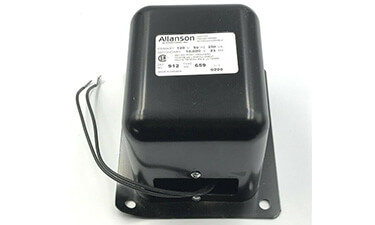

Allanson Ferromagnetic Service Replacement Transformer
53 sizes & variants — select below · Hv Terminal: 6 options · Junction Box: 2 options · Input Voltage: 2 options · Input Frequency: 2 options
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
EXW Singapore
Collect or forward from our office
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
From the manufacturer's datasheet
AllansonRated Operating Input Voltage
120 V
Operating Input Voltage Range
108-132 V
Input Supply Frequency
60 Hz
Primary Voltage - Amperes (VA)
250 VA
Secondary Short Circuit Current
23 mA
Storage Temperature
-40 to +80 °C
Operating Temperature
-30 to +40 °C
Operating Relative Humidity
90 %
Features
- Designed for constant duty
- Provides reliable ignition source for commercial and/or industrial oil applications
- Double pole, mid point ground model
- Loading air gap 1/8 - 3/16 inches
Typical applications
Commercial oil applicationsIndustrial oil applications
Select a size
Showing 53 / 53 variants — scroll the table for more
| Part No (MPN)421BT104 | 3G SKU3G-OTH-03318 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)444BT104 | 3G SKU3G-OTH-03319 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)444BT299 | 3G SKU3G-OTH-03320 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)444BT384 | 3G SKU3G-OTH-03321 | Hv Terminal5 Position Adaptability | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)911-095 | 3G SKU3G-OTH-03322 | Hv TerminalBuss Bar Clips | Junction BoxEXTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911104E | 3G SKU3G-OTH-03323 | Hv TerminalBuss Bar Clips | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-254A | 3G SKU3G-OTH-03324 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-331 | 3G SKU3G-OTH-03325 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-340 | 3G SKU3G-OTH-03326 | Hv TerminalRajah Connector | Junction BoxEXTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-430 | 3G SKU3G-OTH-03327 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-557 | 3G SKU3G-OTH-03328 | Hv TerminalBuss Bar Clips | Junction BoxEXTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-659 | 3G SKU3G-OTH-03329 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-661 | 3G SKU3G-OTH-03330 | Hv TerminalRajah Connector | Junction Box— | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-663 | 3G SKU3G-OTH-03331 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911-664 | 3G SKU3G-OTH-03332 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT104 | 3G SKU3G-OTH-03333 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT290 | 3G SKU3G-OTH-03334 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT299 | 3G SKU3G-OTH-03335 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT332 | 3G SKU3G-OTH-03336 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT384 | 3G SKU3G-OTH-03337 | Hv Terminal5 Position Adaptability | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT387 | 3G SKU3G-OTH-03338 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)911BT636 | 3G SKU3G-OTH-03339 | Hv Terminal6 Position Adaptability | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)912-095 | 3G SKU3G-OTH-03340 | Hv TerminalBuss Bar Clips | Junction BoxEXTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912104E | 3G SKU3G-OTH-03341 | Hv TerminalBuss Bar Clips | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-254A | 3G SKU3G-OTH-03342 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-331 | 3G SKU3G-OTH-03343 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-340 | 3G SKU3G-OTH-03344 | Hv TerminalRajah Connector | Junction BoxEXTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-430 | 3G SKU3G-OTH-03345 | Hv TerminalZinc Plated Button | Junction Box— | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-557 | 3G SKU3G-OTH-03346 | Hv TerminalBuss Bar Clips | Junction BoxEXTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912655G | 3G SKU3G-OTH-03347 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-661 | 3G SKU3G-OTH-03348 | Hv TerminalRajah Connector | Junction Box— | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-663 | 3G SKU3G-OTH-03349 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912-664 | 3G SKU3G-OTH-03350 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)912BT104 | 3G SKU3G-OTH-03351 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT290 | 3G SKU3G-OTH-03352 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT299 | 3G SKU3G-OTH-03353 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT332 | 3G SKU3G-OTH-03354 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT384 | 3G SKU3G-OTH-03355 | Hv Terminal5 Position Adaptability | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT387 | 3G SKU3G-OTH-03356 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)912BT636 | 3G SKU3G-OTH-03357 | Hv Terminal6 Position Adaptability | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz | |
| Part No (MPN)421-655 | 3G SKU3G-OTH-03358 | Hv TerminalRajah Connector | Junction Box— | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT290 | 3G SKU3G-OTH-03360 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT299 | 3G SKU3G-OTH-03361 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT332 | 3G SKU3G-OTH-03362 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT384 | 3G SKU3G-OTH-03363 | Hv Terminal5 Position Adaptability | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT387 | 3G SKU3G-OTH-03364 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)421BT636 | 3G SKU3G-OTH-03365 | Hv Terminal6 Position Adaptability | Junction BoxINTERNAL | Input Voltage120V | Input Frequency60Hz | |
| Part No (MPN)444BT290 | 3G SKU3G-OTH-03366 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)444BT332 | 3G SKU3G-OTH-03367 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)444BT387 | 3G SKU3G-OTH-03368 | Hv TerminalThumb Screw | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)444BT636 | 3G SKU3G-OTH-03369 | Hv Terminal6 Position Adaptability | Junction BoxINTERNAL | Input Voltage240V | Input Frequency60Hz | |
| Part No (MPN)911655G | 3G SKU3G-OTH-03370 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage240V | Input Frequency50Hz | |
| Part No (MPN)912-659 | 3G SKU3G-OTH-03372 | Hv TerminalRajah Connector | Junction BoxINTERNAL | Input Voltage120V | Input Frequency50Hz |
Not sure this is the right part? Get a recommendation.
Need installation or engineering help?
Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineerAsk a question
Frequently Asked Questions
What is the rated operating input voltage?
120 V
What is the secondary short circuit current?
23 mA
What is the operating temperature range?
-30 to +40 °C
