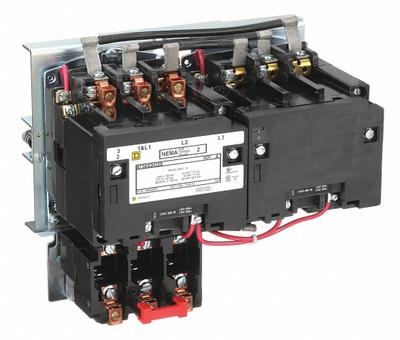

SQUARE D Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 2, 45 A - Reversing Starters with Thermal Overloads
SQUARE DReversing Starters with Thermal Overloads

SQUARE D Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 2, 45 A

The SQUARE D Magnetic Motor Starter is a reversing starter with thermal overloads, NEMA Size 2, 3 Poles, 45 A, and a 120V AC coil (MPN 8736SDO2V02S). It is a three-phase unit with screw clamp terminals and requires 3…

SKU 3G-OTH-45167

Brand
SQUARE D
Item
Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 2, 45 A
Category
Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8736SDO2V02S
Type
NEMA Size 2, 45 A
Phase
Three
Poles
3
AC Coil
120V
Operator
None
Coil Voltage
120V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
3 Melting Alloy Units (Not Included)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D Magnetic Motor Starter is a reversing starter with thermal overloads, NEMA Size 2, 3 Poles, 45 A, and a 120V AC coil (MPN 8736SDO2V02S). It is a three-phase unit with screw clamp terminals and requires 3 melting alloy thermal units (not included). This starter has no operator, no operator controls, no auxiliary contacts, and no pilot light.
