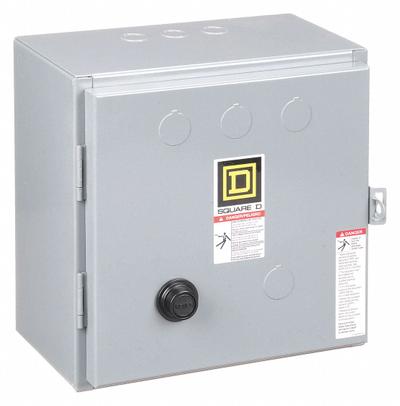

SQUARE D Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 00, 9 A - Enclosed Reversing Starters with Thermal Overloads
SQUARE DEnclosed Reversing Starters with Thermal Overloads

SQUARE D Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 00, 9 A

The SQUARE D Magnetic Motor Starter is a reversing enclosed starter with thermal overloads, designed for three-phase operation. It features a NEMA Size 00 rating, 9 A current capacity, and a 110/120V AC coil voltage…

SKU 3G-OTH-41035

Brand
SQUARE D
Item
Magnetic Motor Starter: Reversing, 3 Poles, NEMA Size 00, 9 A
Category
Enclosed Reversing Starters with Thermal Overloads
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SQUARE D
Manufacturer Part Number
8736SAG16V02S
Type
NEMA Size 00, 9 A
Phase
Three
Poles
3
AC Coil
120V
Operator
None
Coil Voltage
110/120V AC
Operator Controls
None
Includes Pilot Light
No
Thermal Units Required
3 Melting Alloy Units (Not Included)
Terminal Connection Type
Screw Clamp Terminals
Auxiliary Contacts Included
No Auxiliary Contacts Included
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SQUARE D Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SQUARE D Magnetic Motor Starter is a reversing enclosed starter with thermal overloads, designed for three-phase operation. It features a NEMA Size 00 rating, 9 A current capacity, and a 110/120V AC coil voltage. This unit includes screw clamp terminals and requires three melting alloy thermal units (not included) for overload protection.

Used in

Common applications for SQUARE D
Commercial building electrical panels — Square D QO series plug-in circuit breakers for branch circuit protection
Industrial motor control centers — Square D QOB series bolt-on breakers in NQOD panelboards
Heating equipment installations — Square D QOU series unit-mount breakers for overcurrent protection
Outdoor electrical distribution — Square D L-Frame enclosures housing LAL/LHL breakers for 400 A service
Indoor facility power distribution — Square D Q-Frame enclosures with QBL/QDL breakers for 225 A circuits
Retrofit and replacement in existing Square D load centers — QO series breakers for 120/240V AC systems
