SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

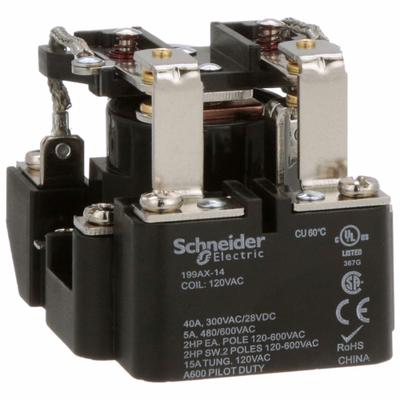

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and DPDT configuration. It has a screw terminal electrical connection and an operating current rating of 40…

SKU 3G-OTH-37108

Brand
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
199AX-14
Series
199 Power Series
Type
DPDT
AC
120V
Base Type
Octal
Current Rating
40 A
Mounting Style
Surface
Pins/Terminals
8
Operating Current
40 A at 300V AC (Resistive Load)
Electrical Connection
Screw Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question
