SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT - Surface-Mounted Relays
SCHNEIDERSurface-Mounted Relays

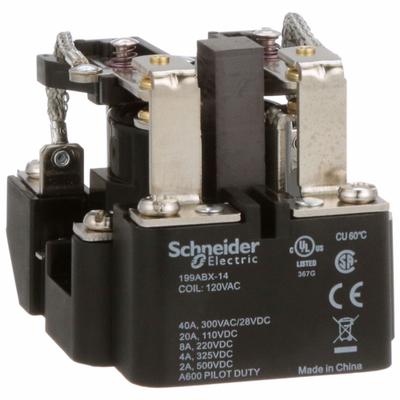

SCHNEIDER Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connections. It is rated for 20 A at 110V DC (resistive load) and has a DPDT…

SKU 3G-OTH-37119

Brand
SCHNEIDER
Item
Open Power Relay: Surface Mounted, 40 A Current Rating, 120V AC, DPDT
Category
Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
199ABX-14
Series
199 Power Series
Type
DPDT
AC
120V
Base Type
Octal
Current Rating
40 A
Mounting Style
Surface
Pins/Terminals
8
Operating Current
20 A at 110V DC (Resistive Load)
Electrical Connection
Screw Terminal
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Open Power Relay is a surface-mounted relay from the 199 Power Series, featuring an octal base and screw terminal electrical connections. It is rated for 20 A at 110V DC (resistive load) and has a DPDT contact configuration with 8 pins/terminals. This relay is designed for surface mounting and is identified by manufacturer part number 199ABX-14.
