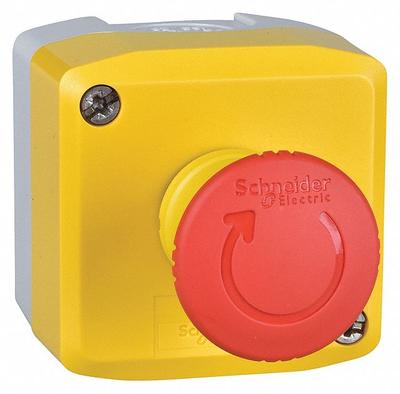

SCHNEIDER Control Station: Mushroom Head Push Button, 0 Pilot Lights, 1NC - Push-Button Control Stations
SCHNEIDERPush-Button Control Stations

SCHNEIDER Control Station: Mushroom Head Push Button, 0 Pilot Lights, 1NC

The SCHNEIDER Control Station is a push-button control station featuring a red mushroom head push button with an Emergency Stop operator legend. This oil- and dust-tight unit is configured as a single mushroom push…

SKU 3G-OTH-26601

Brand
SCHNEIDER
Item
Control Station: Mushroom Head Push Button, 0 Pilot Lights, 1NC
Category
Push-Button Control Stations
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
XALACS1
Type
1NC, Emergency Stop
Pilot Lights
0
Operator Color
Red
Operator Legend
Emergency Stop
Operator Configuration
Mushroom Head Push Button
Environments & Applications
Oil- & Dust-Tight
Operator Configuration Type
(1) Mushroom Push Button
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Control Station is a push-button control station featuring a red mushroom head push button with an Emergency Stop operator legend. This oil- and dust-tight unit is configured as a single mushroom push button with one normally closed contact. The model XALACS1 is designed for industrial environments requiring a robust emergency stop interface.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER push-button control stations. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
