SCHNEIDER Control Station: Push Button, 0 Pilot Lights, 1NO/1NC, To Stop Break Glass - Push-Button Control Stations
SCHNEIDERPush-Button Control Stations

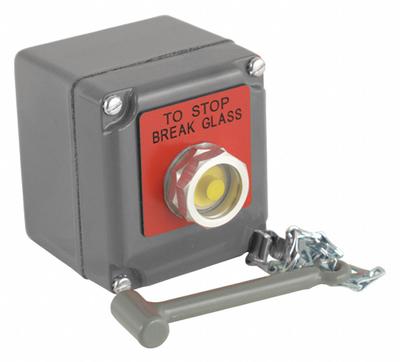

SCHNEIDER Control Station: Push Button, 0 Pilot Lights, 1NO/1NC, To Stop Break Glass

The SCHNEIDER Control Station: Push Button is a push-button control station with a yellow operator and the legend 'To Stop Break Glass'. It features a momentary (1) push-button configuration with 1NO/1NC contacts and…

SKU 3G-OTH-27005

Brand
SCHNEIDER
Item
Control Station: Push Button, 0 Pilot Lights, 1NO/1NC, To Stop Break Glass
Category
Push-Button Control Stations
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
9001KYK116
Type
1NO/1NC, To Stop Break Glass, Momentary
Pilot Lights
0
Operator Color
Yellow
Operator Legend
To Stop Break Glass
Environments & Applications
Oil- & Dust-Tight
Operator Configuration Type
(1) Push Button
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER Control Station: Push Button is a push-button control station with a yellow operator and the legend 'To Stop Break Glass'. It features a momentary (1) push-button configuration with 1NO/1NC contacts and is designed for oil- and dust-tight environments.

Used in

Common applications for SCHNEIDER
Motor starting in conveyor systems — Schneider Altistart ATS 22 soft starters (e.g., ATS22D17S6U) reduce inrush current.
Speed control for industrial pumps — Schneider Altivar ATV320 VFDs (e.g., ATV320U55N4W) provide variable flow regulation.
Machine safety interlocking — Schneider XPSUAF13AP safety relays monitor emergency stop circuits on assembly lines.
Panel-mounted control stations — Schneider XB5 flush push buttons (ZB5AA5) serve as start/stop operators in MCCs.
Heavy-duty motor switching — Schneider LC1G150LSEA contactors handle 150 A loads in compressor and crusher applications.
Emergency stop actuation — Schneider 9001K mushroom-head push buttons (9001KR25R) provide red, momentary stop functions.

SCHNEIDER Products

3G Electric supplies SCHNEIDER push-button control stations. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
