SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT - Socket-Mounted Relays

SCHNEIDERSocket-Mounted Relays

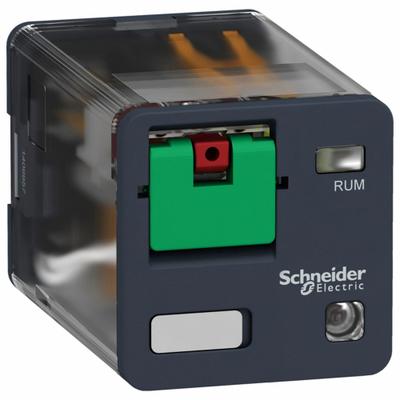

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RUM Series, featuring a square base with flat pins and a plug-in mounting style. It is a 3PDT relay rated for 10 A at 120V AC, with…

SKU 3G-OTH-39867

Brand

SCHNEIDER

Item

General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT

Category

Socket-Mounted Relays

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

SCHNEIDER

Manufacturer Part Number

RUMF32F7

Series

Harmony™ RUM Series

Type

3PDT, C Socket

AC

120V

Base Type

Square

Pin Shape

Flat

Current Rating

10 A

Mounting Style

Plug-In

Electrical Connection

Quick-Connect

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

SCHNEIDER Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Harmony™ RUM Series, featuring a square base with flat pins and a plug-in mounting style. It is a 3PDT relay rated for 10 A at 120V AC, with quick-connect electrical connections. The relay uses a C socket and is identified by manufacturer part number RUMF32F7.
