SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT - Socket-Mounted Relays
SCHNEIDERSocket-Mounted Relays

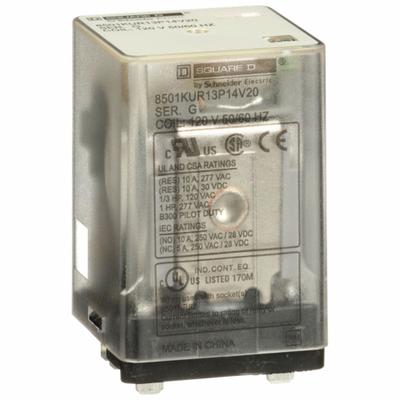

SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501K Series. It features a square base with flat pins, a quick-connect electrical connection, and a 10 A current rating at 120V AC with…

SKU 3G-OTH-41059

Brand
SCHNEIDER
Item
General Purpose Relay: Socket Mounted, 10 A Current Rating, 120V AC, 3PDT
Category
Socket-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

SCHNEIDER
Manufacturer Part Number
8501KUR13P14V20
Series
Square D 8501K Series
Type
3PDT, C Socket
AC
120V
Base Type
Square
Pin Shape
Flat
Current Rating
10 A
Mounting Style
Socket
Electrical Connection
Quick-Connect
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

SCHNEIDER Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The SCHNEIDER General Purpose Relay is a socket-mounted relay from the Square D 8501K Series. It features a square base with flat pins, a quick-connect electrical connection, and a 10 A current rating at 120V AC with 3PDT contact configuration. The relay uses a C socket and is identified by manufacturer part number 8501KUR13P14V20.
