Pratissoli PUMP SS7193 L

Pratissoli SS7193 L is an industrial pump delivering 93 L/min at 200 bar, rated 35.3 kW, operating at 1000 rpm. Suited for high-pressure hydraulic systems requiring reliable flow and pressure performance in demanding…

SKU 3G-ITP-00905

Also listed as: SS7193S000 · SS7193S 000

Brand

Pratissoli

Item

PUMP SS7193 L

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Pratissoli

Flow Rate

93 L/min

Pressure

200 bar

Power

35.3 kW

Speed

1000 RPM

Weight

68 kg

Dimensions

526 mm

Power

48 HP

Flow (US)

24.5 GPM

Pressure

20 MPa

Pressure

2900 PSI

Datasheet Content

SS7193




TECHNICAL INFORMATION
Flow (L/min)                        93
Flow (US Gpm)                       24,5
Rotation regime (rpm)               1000
Pressure (MPa)                      20
Pressure (bar)                      200
Pressure (psi)                      2900
Power (hp)                          48
Power (kW)                          35,3
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS7193                                              3/21/2026   Page 1 - 18
Copyright INTERPUMP GROUP S.P.A
SS7193

     Documents

Male shaft (key) - GAS

Male shaft (key) - NPT

Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Male shaft (key) - GAS - ATEX




SS7193                                                   3/21/2026   Page 2 - 18
Copyright INTERPUMP GROUP S.P.A

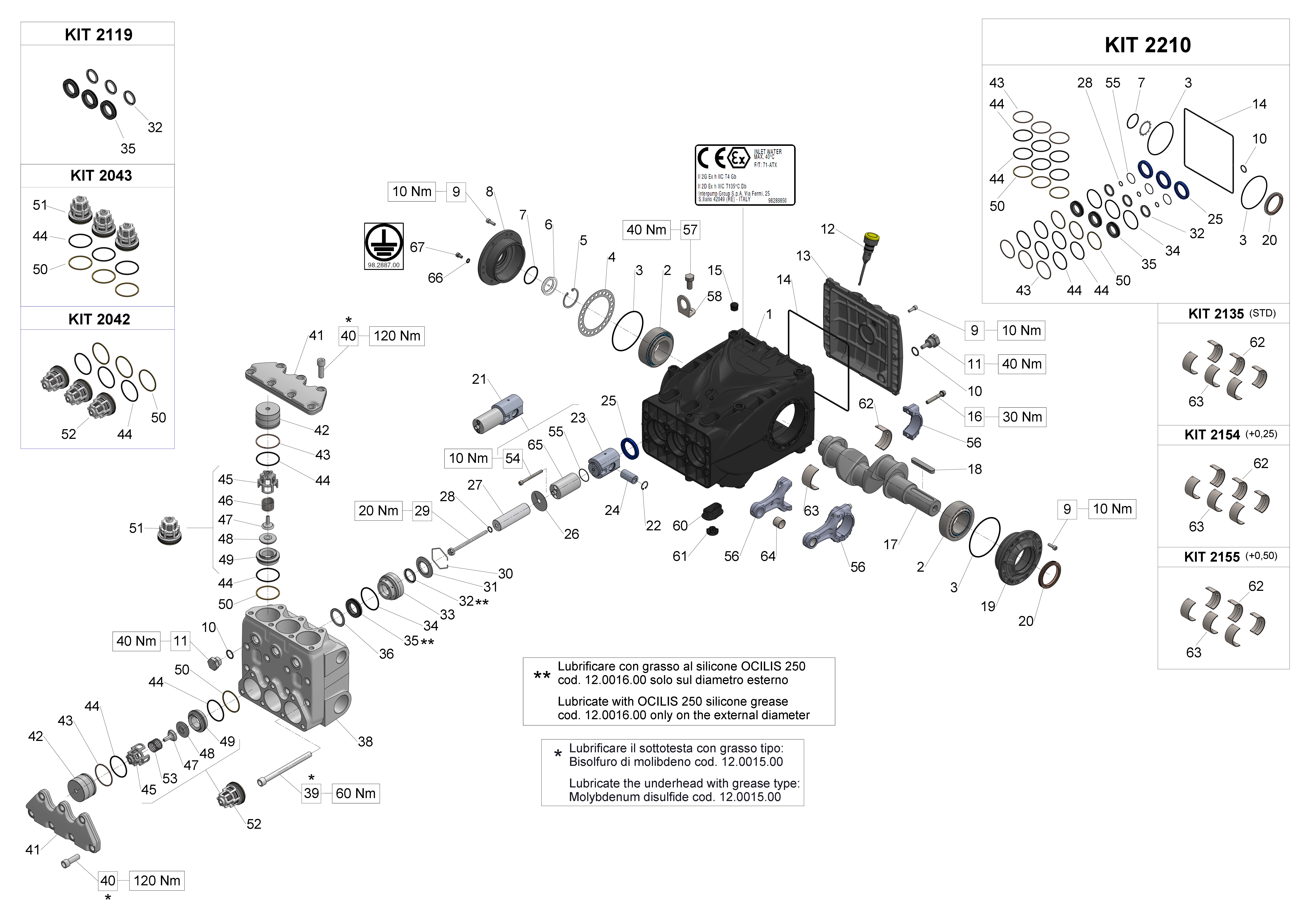

Illustration Male shaft (key) - GAS




SS7193                                3/21/2026   Page 3 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS7193                                                           3/21/2026   Page 4 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71128636                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS7193                                                         3/21/2026   Page 5 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS7193                                            3/21/2026   Page 6 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT




SS7193                                3/21/2026   Page 7 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.      Code          Description                  Qty Notes
KIT2210   34221001                                   1
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2119   34211901                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS7193                                                           3/21/2026   Page 8 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127236                                    1
36     70222266                                    3
35     90238000                                    3
34     90389100                                    3
33     71227366                                    3
32     90238100                                    3
31     71227266                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040609                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS7193                                                         3/21/2026   Page 9 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - NPT

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS7193                                            3/21/2026   Page 10 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5




SS7193                                            3/21/2026           Page 11 - 18
Copyright INTERPUMP GROUP S.P.A
Illustration Gearbox with male shaft (key) - GAS - 1800 rpm - R=1,5

Pos.      Code          Description                 Qty Notes
KIT2210   34221001                                  1
KIT2155   34215501                                  1
KIT2154   34215401                                  1
KIT2135   34213501                                  1
KIT2119   34211901                                  1
KIT2043   34204301                                  1
KIT2042   34204201                                  1
95        99430700                                  1
94        97594000                                  1
93        90394800                                  1
92        90358500      O-RING 10,82X1,78 (2043)    2
90        98204250      PLUG G1/4"x12               2
91        97618500                                  1
89        72211055                                  1
88        99314600…

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the Pratissoli SS7193 L pump worldwide?

3G Electric is an authorized distributor of Pratissoli pumps. We source the SS7193 L and handle customs, logistics, and worldwide delivery. Contact us for lead time and pricing.

What is the lead time for the Pratissoli SS7193 L?

Lead time varies by region and current availability. Contact 3G Electric with your delivery location for a firm quote. We coordinate international freight and customs clearance.

What are the flow and pressure specifications of the SS7193 L?

The Pratissoli SS7193 L delivers 93 L/min (24.5 US gpm) at 200 bar (20 MPa / 2900 psi) operating at 1000 rpm with 35.3 kW (48 hp) rated power.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SS7193 parts list — 60 parts, 14 available in catalog

Official Parts List

SS7193 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220081×1Available

70220381×1Available

90075600×1Available

70211801×1Available

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×6Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SS7193 parts list — Industrial Pumps (Stainless Steel Versions Series 64 SS)

Pratissoli Products

3G Electric supplies Pratissoli industrial pumps. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

Browse all Pratissoli products →Contact our engineers →
