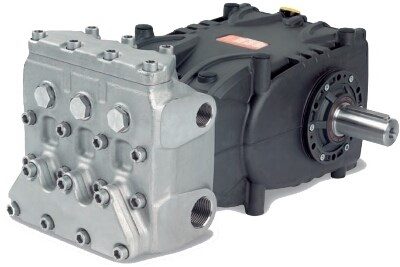

Pratissoli PUMP SS71170 L

Pratissoli PUMP SS71170 L is an industrial centrifugal pump delivering 170 L/min at 100 bar, powered by a 32.5 kW motor operating at 900 rpm. Suitable for high-pressure hydraulic and manufacturing applications…

SKU 3G-ITP-00900

Also listed as: SS71170S000 · SS71170S 000

Brand

Pratissoli

Item

PUMP SS71170 L

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

Pratissoli

Flow Rate

170 L/min

Pressure

100 bar

Power

32.5 kW

Speed

900 RPM

Weight

68 kg

Dimensions

526 mm

Power

44.2 HP

Flow (US)

44.9 GPM

Pressure

10 MPa

Pressure

1450 PSI

Datasheet Content

SS71170




TECHNICAL INFORMATION
Flow (L/min)                        170
Flow (US Gpm)                       44,9
Rotation regime (rpm)               900
Pressure (MPa)                      10
Pressure (bar)                      100
Pressure (psi)                      1450
Power (hp)                          44,2
Power (kW)                          32,5
Overall dimensions L x l x h (mm)   526x367x252,5
Weight (kg)                         68




SS71170                                             3/21/2026   Page 1 - 6
Copyright INTERPUMP GROUP S.P.A
SS71170

     Documents

Male shaft (key) - GAS




SS71170                           3/21/2026   Page 2 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS




SS71170                               3/21/2026   Page 3 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.      Code          Description                  Qty Notes
KIT2155   34215501                                   1
KIT2154   34215401                                   1
KIT2135   34213501                                   1
KIT2044   34204401                                   1
KIT2043   34204301                                   1
KIT2042   34204201                                   1
KIT2033   34203301                                   1
65        71050866                                   3
64        90911000                                   3
63        90924000                                   3
63        90922200      UPPER HALF CONROD BUSHING 3
                        +0.5 (BIG END) S.70

63        90922100      UPPER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

62        90924300                                   3
62        90922500      LOWER HALF CONROD BUSHING 3
                        +0.50 (BIG END) S.70

62        90922400      LOWER HALF CONROD BUSHING 3
                        +0.25 (BIG END) S.70

61        71225951      PLUG CAP                     3
60        71225851                                   6
58        71223074      STAFFA DI SOLLEVAMENTO       1
57        99426600      VITE TE M12X25-UNI5739 ZINC. 1


56        71030701                                   3
55        90352800      O-RING D. 29.00x1.50 NBR 70SH 3


54        99199400                                   6
53        94754000      SPRING D.24.7X27             3
52        36715501                                   3
51        36715601                                   3
50        90524000                                   6
49        36207256                                   6
48        36209602                                   6
47        36208651      INNER VALVE GUIDE            6
46        94755000                                   3
45        36204505      VALVE CAGE SS (71 SERIES)    6


44        90388900                                   12
43        90525000                                   6
42        71223766                                   6




SS71170                                                          3/21/2026   Page 4 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description                Qty Notes

41     71223636                                    2
40     99429500         SCREW M12X35 UNI5931 12.31 14
                        DACR.
39     99448200                                    8
38     71127536                                    1
36     71212366                                    2
35     90246000                                    3
34     90389100                                    3
33     71223966                                    3
32     90245000                                    3
31     71224066                                    3
30     90079700                                    3
29     71223856                                    3
28     90367100                                    3
27     71040509                                    3
26     96714000                                    3
25     90167800                                    3
24     97743000                                    3
23     71050715                                    3
22     90060600                                    1
21     71606601                                    3
20     90170000                                    1
19     71150022                                    1
18     91500000                                    1
17     71020035                                    1
16     99313800                                    6
15     98206000                                    4
14     90400000                                    1
13     71160022                                    1
12     98212000                                    1
11     98218100                                    4
10     90384100         O-RING 17,12X2,62 (3068)   6
9      99186800                                    20
8      71150122                                    1
7      90387700         O-RING 39,34X2,62 (3156)   1
6      70211801         OIL SIGHT GLASS            1
5      90075600         CIRCLIP D.45 (ZJ45)        1
4      70220381         SHIM 0.25 MM.              1
4      70220081         SHIM 0.1 MM.               1
3      90391800                                    2
2      91859000                                    2




SS71170                                                        3/21/2026   Page 5 - 6
Copyright INTERPUMP GROUP S.P.A
Illustration Male shaft (key) - GAS

Pos.   Code             Description   Qty Notes

1      71010022                       1




SS71170                                           3/21/2026   Page 6 - 6
Copyright INTERPUMP GROUP S.P.A

Technical Documents

(1)

Technical Data Sheet

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

Pratissoli Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the Pratissoli SS71170 pump worldwide?

Order the Pratissoli SS71170 from 3G Electric, an authorized distributor. We handle procurement, customs clearance, and logistics to ship this 170 L/min, 100 bar centrifugal pump globally. Lead time on request.

What is the lead time and shipping for the SS71170S pump?

The Pratissoli SS71170S is available to order with lead time determined by current availability. 3G Electric manages all logistics, documentation, and worldwide delivery. Contact us for a specific lead-time quote.

What applications is the Pratissoli SS71170 pump rated for?

The Pratissoli SS71170 delivers 170 L/min at 100 bar (10 MPa / 1,450 psi) with a 32.5 kW motor at 900 rpm. It is designed for high-pressure hydraulic systems and manufacturing applications requiring reliable, continuous fluid transfer in industrial settings.

Used in

Common applications for Pratissoli

High-pressure industrial cleaning systems — Pratissoli SN7070F and SN71106F pumps (130–200 bar) for sustained pump duty in fixed or mobile wash equipment

Marine and shipboard hydraulic systems — SS7061H and SS71153 pumps rated 150–160 bar for deck machinery and propulsion auxiliaries requiring compact, reliable units

Construction equipment hydraulics — SN7193 and SN71106 models (200–210 bar) for excavator, loader, and crane power-transmission circuits

Industrial press and forming machinery — Pratissoli pump assemblies with ZR1X regulating valves (400 bar) for closed-loop pressure control in metal-working and rubber-molding lines

Mining and aggregates processing — Long-duty SS and SN series pumps (130–160 bar) supplying conveyor drives, screen shakers, and mobile crusher circuits

Oil and gas transfer and metering — Pratissoli regulating-valve models (H168A, R1/200) in skid-mounted pump packages for fluid loading, injection, and line-pressure stabilization

Spare Parts & Repair Kits

Official SS71170 parts list — 14 parts, 14 available in catalog

Official Parts List

SS71170 — Male shaft (key) - GAS exploded diagram

Individual Components

PosCodeDescriptionQty

70220381×1Available

70220081×1Available

90075600×1Available

70211801×1Available

O-RING 39,34X2,62 (3156)

90387700×1Available

View

O-RING 17,12X2,62 (3068)

90384100×6Available

View

SCREW M12X35 UNI5931 12.31 DACR.

99429500×14Available

View

VALVE CAGE SS (71 SERIES)

36204505×6Available

36208651×6Available

94754000×3Available

STAFFA DI SOLLEVAMENTO

71223074×1Available

View

PLUG CAP

71225951×3Available

View

UPPER HALF CONROD BUSHING +0.5 (BIG END) S.70

90922200×3Available

View

UPPER HALF CONROD BUSHING +0.25 (BIG END) S.70

90922100×3Available

View

Need multiple parts? Request a bundled quote

14 parts available in our catalog — get a single quote with volume pricing

Request Bundle Quote

✓ Genuine manufacturer parts✓ Expert technical support✓ Worldwide shipping

Official SS71170 parts list — Industrial Pumps (Stainless Steel Versions Series 71 SS)
