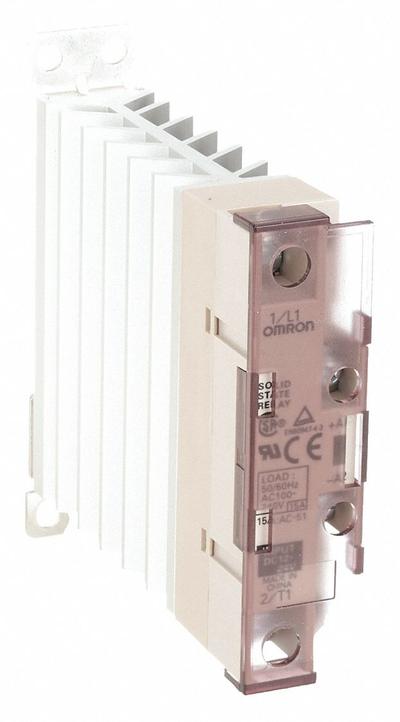

OMRON Solid State Relay: DIN-Rail & Surface Mounted, 15 A Max Output Current - Combination DIN-Rail & Surface-Mounted Relays
OMRONCombination DIN-Rail & Surface-Mounted Relays

OMRON Solid State Relay: DIN-Rail & Surface Mounted, 15 A Max Output Current

The OMRON G3PE-215B DC12-24 is a combination DIN-rail and surface-mounted solid-state relay with a Form A switch configuration and AC output. It accepts a DC input current of 0.6 to 15 A and delivers an output…

SKU 3G-OTH-37973

Brand
OMRON
Item
Solid State Relay: DIN-Rail & Surface Mounted, 15 A Max Output Current
Category
Combination DIN-Rail & Surface-Mounted Relays
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

OMRON
Manufacturer Part Number
G3PE-215B DC12-24
Type
Phototriac, AC Output
Finger Safe
Yes
Current Type
DC
Input Current
0.6 to 15 A
Mounting Style
DIN Rail & Screw
Output Voltage
120 to 240V AC
Max Output Current
15 A
Switch Configuration
Form A
Voltage/Current Type
AC Output
Electrical Connection
Screw Clamp
Maximum Output Current without Heat Sink
15 A
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

OMRON Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The OMRON G3PE-215B DC12-24 is a combination DIN-rail and surface-mounted solid-state relay with a Form A switch configuration and AC output. It accepts a DC input current of 0.6 to 15 A and delivers an output voltage of 120 to 240V AC, with a maximum output current of 15 A without a heat sink. The relay features screw-clamp electrical connections and is finger-safe for added protection.
