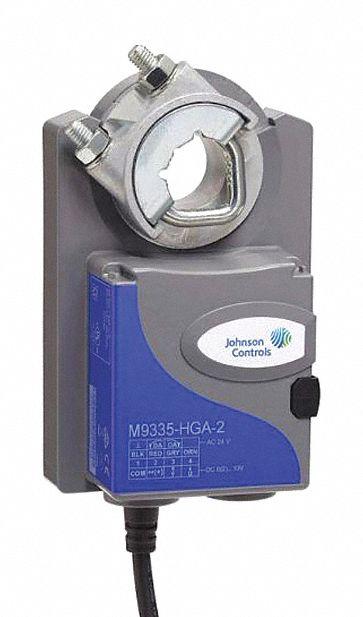

JOHNSON CONTROLS Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return - Non-Fail-Safe Actuators
JOHNSON CONTROLSNon-Fail-Safe Actuators

JOHNSON CONTROLS Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return

The JOHNSON CONTROLS M9335-HGA-2 is a non-fail-safe damper actuator with a 1.3W power rating and 24V AC/DC input voltage. It provides a 0 to 10V DC output signal, supports a 35 to 95° stroke degree, and offers CW/CCW…

SKU 3G-OTH-67672

Brand
JOHNSON CONTROLS
Item
Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return
Category
Non-Fail-Safe Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
M9335-HGA-2
Type
Floating Point/On/Off/Proportional, Non-Spring Return, 310 in-lb, IP54
AC/DC
24V
Power Rating
1.3W
Input Voltage
24V AC/DC
Output Signal
0 to 10V DC
Stroke Degree
35 to 95°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
Yes
Electrical Connection Type
Hardwired
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS M9335-HGA-2 is a non-fail-safe damper actuator with a 1.3W power rating and 24V AC/DC input voltage. It provides a 0 to 10V DC output signal, supports a 35 to 95° stroke degree, and offers CW/CCW shaft rotation. This actuator includes an auxiliary switch, is hardwired, and is compatible with building automation systems.
