JOHNSON CONTROLS Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return - Non-Fail-Safe Actuators
JOHNSON CONTROLSNon-Fail-Safe Actuators

JOHNSON CONTROLS Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return

The JOHNSON CONTROLS M9320-HGA-2 is a non-fail-safe damper actuator with a 1.3W power rating and 24V AC/DC input voltage. It provides a 0 to 10V DC output signal and supports a stroke degree of 35 to 95° with CW/CCW…

SKU 3G-OTH-67557

Brand
JOHNSON CONTROLS
Item
Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return
Category
Non-Fail-Safe Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

JOHNSON CONTROLS
Manufacturer Part Number
M9320-HGA-2
Type
Floating Point/On/Off/Proportional, Non-Spring Return, 177 in-lb, IP54
AC/DC
24V
Power Rating
1.3W
Input Voltage
24V AC/DC
Output Signal
0 to 10V DC
Stroke Degree
35 to 95°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
Yes
Electrical Connection Type
Hardwired
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

JOHNSON CONTROLS Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The JOHNSON CONTROLS M9320-HGA-2 is a non-fail-safe damper actuator with a 1.3W power rating and 24V AC/DC input voltage. It provides a 0 to 10V DC output signal and supports a stroke degree of 35 to 95° with CW/CCW shaft rotation. This hardwired actuator includes an auxiliary switch and is compatible with building automation systems.

Used in

Common applications for JOHNSON CONTROLS
Industrial refrigeration — Johnson Controls P170SA-1C dual pressure control for compressor protection in ammonia or halocarbon systems
Chiller plant automation — Johnson Controls VA7810-HGA-2 electric globe valve actuator for modulating chilled water flow in VG7000 series valves
Pneumatic HVAC retrofit — Johnson Controls T-4002-302 conversion kit for upgrading existing Robertshaw thermostats in commercial buildings
Cooling tower water management — Johnson Controls V-4332-1007 pneumatically actuated diaphragm valve for 3-way diverting of water flow
Boiler fuel oil pressure monitoring — Johnson Controls P545NCB-25C electronic lube oil pressure control with alarm for burner management systems
Process pressure sensing — Johnson Controls P599AAPS105C pressure transmitter with IP67 rating for washdown zones in food and beverage plants

JOHNSON CONTROLS Products

3G Electric supplies JOHNSON CONTROLS non-fail-safe actuators. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.

You might also need

Burners & Combustion →Pumps & Compressors →Spare Parts →All Products →

Similar products

Matched by specification & description

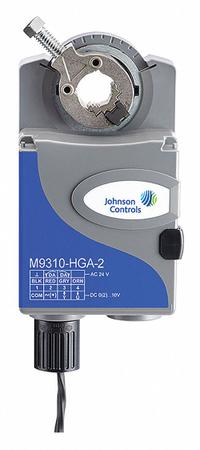

Actuator: Dampers, Floating Point/On/Off/Proportional, Non-Spring Return, 89 in-lb, 24V AC/DC, IP54 (MPN M9310-HGA-2). Key specifications — Manufacturer Part Number: M9310-HGA-2; Shaft Rotation: CW/CCW; Stroke Degree: 35 to 95°; Power Rating: 1.3W; Input Voltage: 24V AC/DC; Brand: JOHNSON CONTROLS; For Use With Building Automation Systems: Building Automation System Compatible; Output Signal: 0 to 10V DC.
