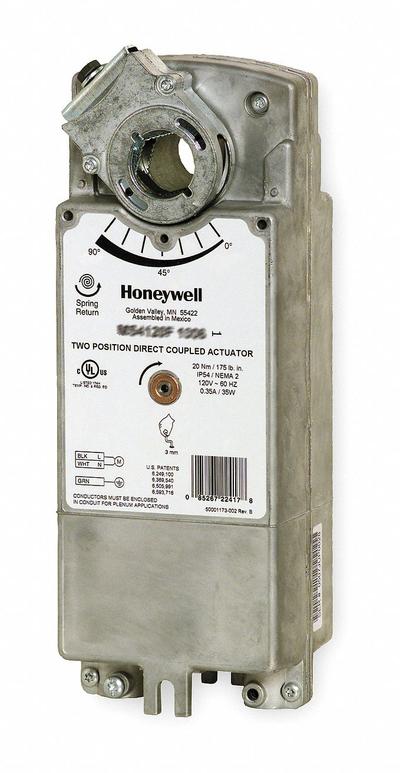

Honeywell Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Hardwired - Fire & Smoke Rated Actuators
HoneywellFire & Smoke Rated Actuators

Honeywell Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Hardwired

The Honeywell MS8120F1002/U is a fire and smoke rated damper actuator with on/off, spring return operation. It delivers 175 in-lb torque, features a 95° stroke with CW/CCW shaft rotation, and operates on 24V AC…

SKU 3G-OTH-67073

Brand
Honeywell
Item
Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Hardwired
Category
Fire & Smoke Rated Actuators
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
MS8120F1002/U
Type
On/Off, Spring Return, 175 in-lb, Hardwired, NEMA 2 / IP54
AC
24V
Input Voltage
24V AC
Stroke Degree
95°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
No
Electrical Connection Type
Hardwired
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell MS8120F1002/U is a fire and smoke rated damper actuator with on/off, spring return operation. It delivers 175 in-lb torque, features a 95° stroke with CW/CCW shaft rotation, and operates on 24V AC input. This hardwired actuator is NEMA 2 / IP54 rated and compatible with building automation systems.
