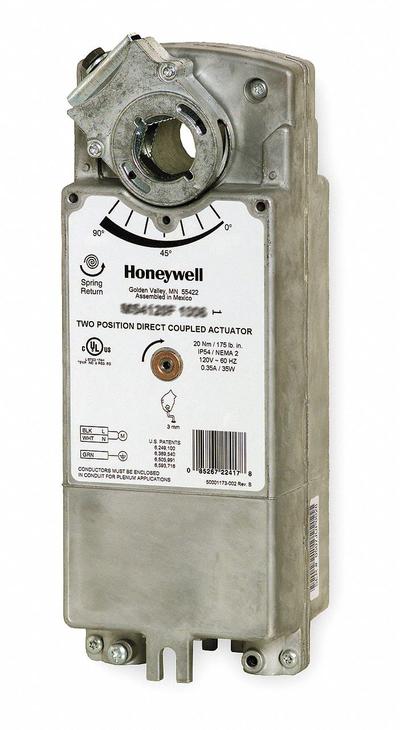

Honeywell Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Screw Terminals - Fail-Safe Actuators with Spring Return
HoneywellFail-Safe Actuators with Spring Return

Honeywell Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Screw Terminals

The Honeywell MS8120A1205/U is a fail-safe actuator with spring return for dampers, operating in on/off mode. It features a 24V AC input, 95° stroke, self-centering clamping shaft, and CW/CCW rotation. This unit…

SKU 3G-OTH-67795

Brand
Honeywell
Item
Actuator: Dampers, On/Off, Spring Return, 175 in-lb, 24V AC, Screw Terminals
Category
Fail-Safe Actuators with Spring Return
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

Honeywell
Manufacturer Part Number
MS8120A1205/U
Type
On/Off, Spring Return, 175 in-lb, Screw Terminals, NEMA 2 / IP54
AC
24V
Shaft Type
Self-Centering Clamping
Input Voltage
24V AC
Stroke Degree
95°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
Yes
Electrical Connection Type
Screw Terminals
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

Honeywell Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The Honeywell MS8120A1205/U is a fail-safe actuator with spring return for dampers, operating in on/off mode. It features a 24V AC input, 95° stroke, self-centering clamping shaft, and CW/CCW rotation. This unit includes auxiliary switches and screw terminals, and is compatible with building automation systems.
