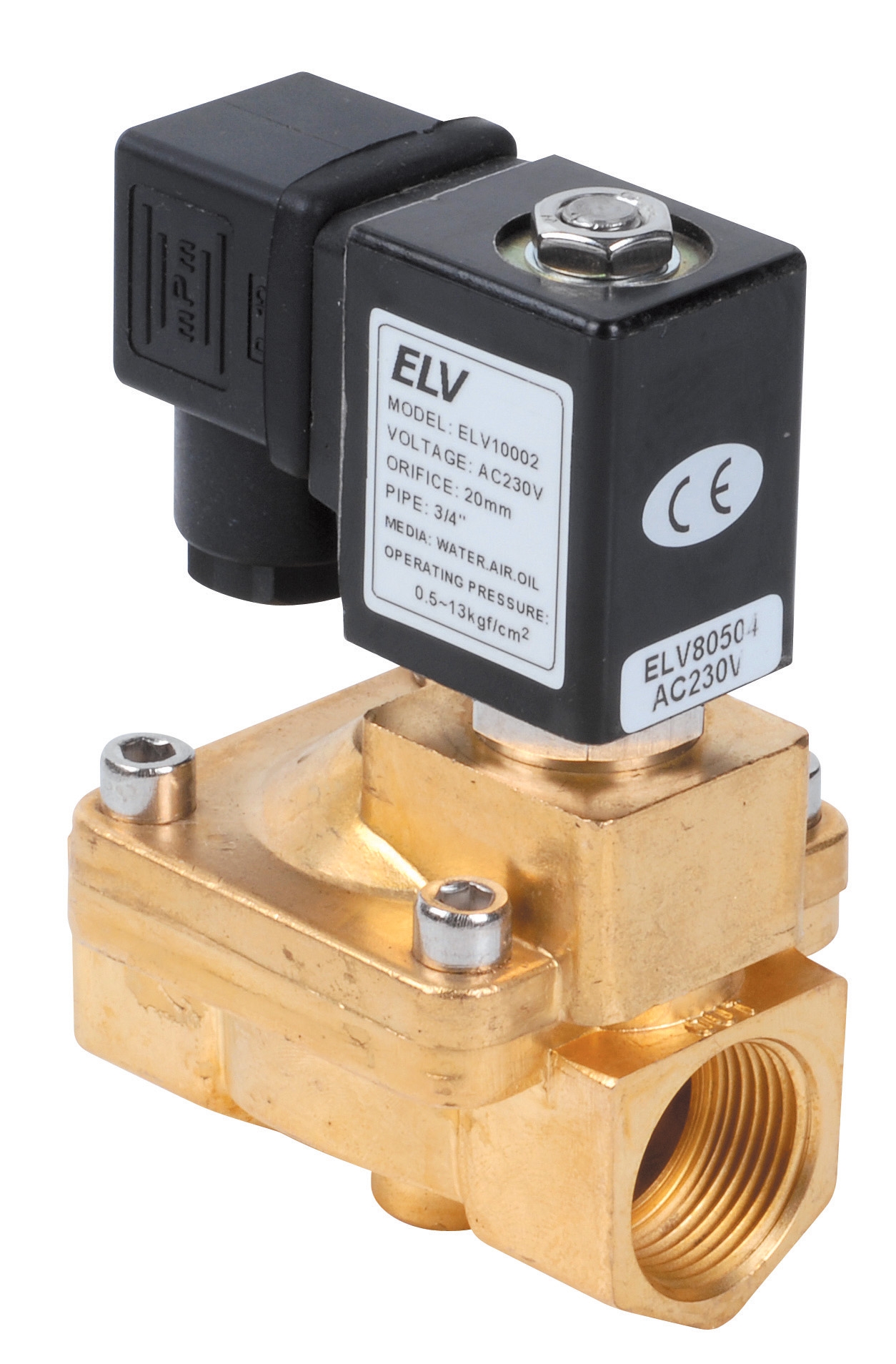

ELV Solenoid valve D.1" 1/4 NF 230V

ELV solenoid valve for pneumatic and fluid control applications handles air, water, and oil with 1.25 inch NF connection. Operates at 0.5–13 bar with 17 bar maximum pressure rating. Suited for industrial automation…

SKU 3G-CBM-03219

Also listed as: ELV 10006 · ELV-10006

Brand

ELV

Item

Solenoid valve D.1" 1/4 NF 230V

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

ELV

type

solenoid valve indirect action

fluid

air, water, oil

power 24V

13 W

viscosity

<20 CST

connection

1.25 inch NF

power 220V

22 VA

max pressure

17 bar

operating pressure

0.5-13 bar

Datasheet Content

Electrovannes bronze nf
                                                                                                                 Code
                                     Action indirecte

      Electrovanne 3/8”                         • Avec connecteur                                             ELV10001

      Electrovanne 1/2”                         • Avec connecteur                                             ELV10003

      Electrovanne 3/4”                         • Avec connecteur                                             ELV10002

      Electrovanne 1”                           • Avec connecteur                                             ELV10004

      Electrovanne 1”1/4                        • Avec connecteur                                             3G-CBM-03219

      Electrovanne 1”1/2                        • Avec connecteur                                             ELV10008

      Electrovanne 2”                           • Avec connecteur                                             ELV10010


      Caractéristiques techniques
                  Modèle             ELV10001    ELV10003   ELV10002      ELV10004         3G-CBM-03219   ELV10008    ELV10010
      Diamètre Raccord                3/8“        1/2“        3/4”            1”           1” 1/4     1” 1/2        2”
      Diamètre passage                13mm        13mm       20mm          25mm             35mm       40mm        50mm
      Pression différentielle max.     13           13         13            13              13         13          13
      Valeur CV                        4,5         4,5        7.6            12              22         30          48
      Consommation VA 220 volt         22           22         22            22              22         22          22
      Consommation W 24 volt           13           13         13            13              13         13          13
      Dim A mm                        66,5         66,5        75            96              131        131         165
      Dim C mm                        112,5       112,5       118            131             146        146         167
      Viscosité fluide                                               Moins de 20 CST
      Fluide                                                           Air - Eau - Fioul
      Pression fonctionnement                                           0.5 ~13 bar
      Pression maxi                                                         17 bar
      Température maxi                                                 -10°C ~ 90°C
      Tension                                                        +/- 10% - AC230V
      Matériel corps                                                       Bronze
      Membrane                                                              NBR
      Mode opération                                                Commande indirecte
      Type                                                          Normalement fermée
      Protection IP                                                         IP65


      PIÈCES DE RECHANGES POUR VANNES
                  Modèle             ELV10001    ELV10003   ELV10002      ELV10004         3G-CBM-03219   ELV10008    ELV10010
      Référence bobine 220 V         ELV80504    ELV80504   ELV80504      ELV80504     ELV80504       ELV80504    ELV80504
      Référence bobine 110 V         ELV80522    ELV80522   ELV80522      ELV80522     ELV80522       ELV80522    ELV80522
      Référence bobine AC 48 V       ELV80542    ELV80542   ELV80542      ELV80542     ELV80542       ELV80542    ELV80542
      Référence bobine AC 24 V       ELV80562    ELV80562   ELV80562      ELV80562     ELV80562       ELV80562    ELV80562
      Référence bobine AC 12 V       ELV80604    ELV80604   ELV80604      ELV80604     ELV80604       ELV80604    ELV80604
      Référence bobine DC 24 V       ELV81504    ELV81504   ELV81504      ELV81504     ELV81504       ELV81504    ELV81504
      Référence bobine DC 12 V       ELV81522    ELV81522   ELV81522      ELV81522     ELV81522       ELV81522    ELV81522
      Référence membrane NBR         ELV90530    ELV90530   ELV90522      ELV90524     ELV90526       ELV90526    ELV90528
      Référence membrane EPDM        ELV91522    ELV91522   ELV91522      ELV91524     ELV91526       ELV91526    ELV91528
      Référence membrane VITON       ELV92522    ELV92522   ELV92522      ELV92524     ELV92526       ELV92526    ELV92528

246
