CBMHVAC & Refrigeration

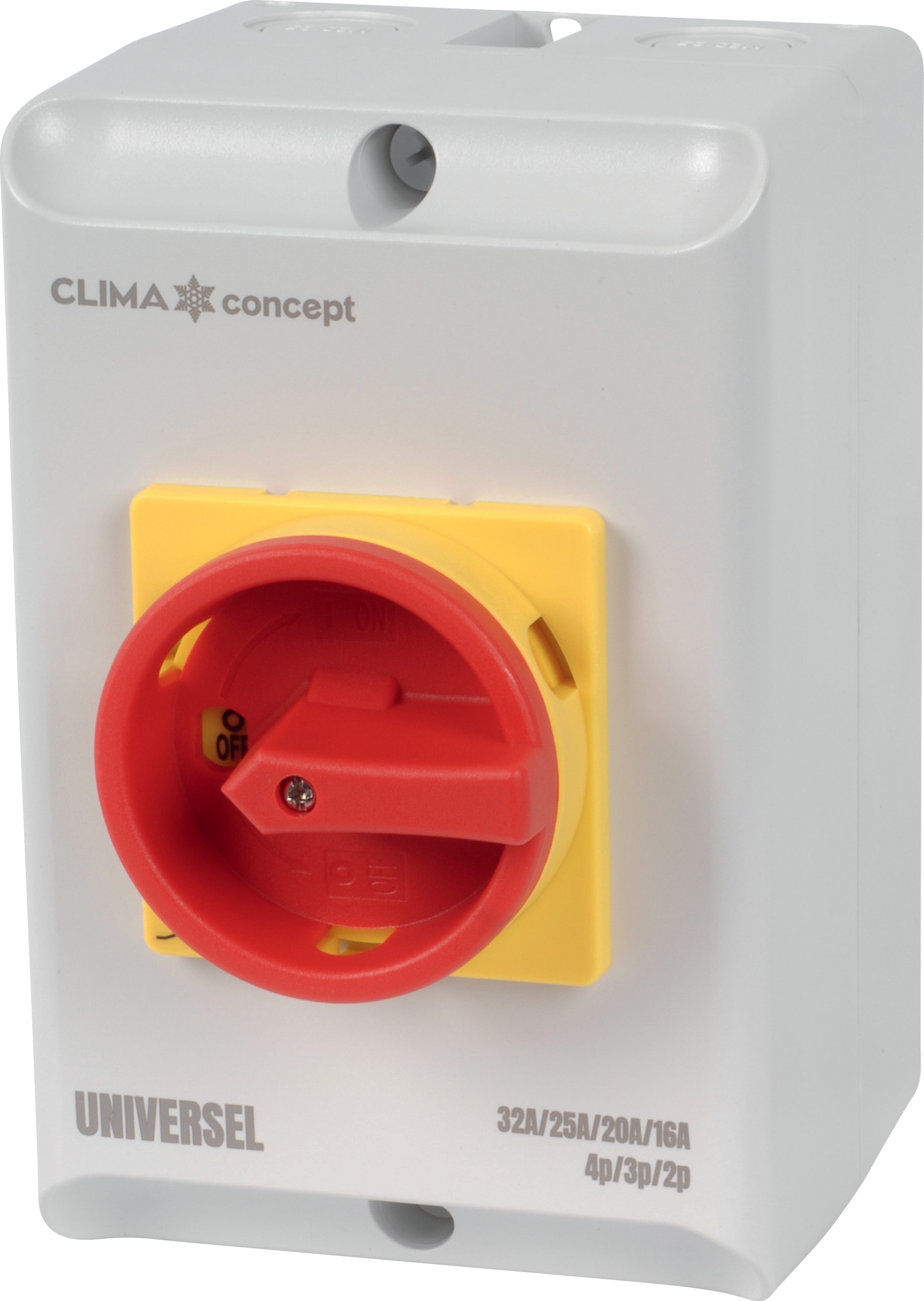

CBM Universal proximity switch L 32/25/20/16A - 2/3/4P+gland press.

CBM universal proximity switch for air conditioning applications, rated 16 to 32 A with 2/3/4 poles and IP66 protection. Operates at 50/60 Hz for reliable industrial control and switching duty.

SKU 3G-CBM-01167

Also listed as: CLI 58024 · CLI-58024

Brand

CBM

Item

Universal proximity switch L 32/25/20/16A - 2/3/4P+gland press.

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

poles

2/3/4 P

rating

32/25/20/16 A

frequency

50/60 Hz

ip rating

IP66

dimensions

176 X 116 X 136

breaking capacity

16 to 32 A

Datasheet Content

INTERRUPTEUR DE PROXIMITÉ UNIVERSEL "L"
                                       3G-CBM-01167
                                                                                                                                      IP66


                              Un modèle tout en un compatible avec plus de 90% des applications
                                                  32/25/20/16 A et 2/3/4 P.
                                      Livré avec 2 jeux de presse-étoupes M20 et M25.
                                          • Protection boitier IP66                                  • Protection des installations
                                          • Boîtier polycarbonate robuste                            • Cadenassable en position
                                            pour conditions extrêmes                                   OFF
                                          • Facilité d’installation                                  • Norme EN 60947-3



  DETAILS TECHNIQUES :
  •   Pouvoir de coupure : 16 à 32A
  •   Tension alimentation : 230V - 440V                                                                                              90
  •   Fréquence : 50/60 Hz
  •   Pôles : 2 / 3 / 4
  •   Poids : 0,63 kg
                                                                                               176                                         165   90



  DIMENSIONS (mm) :
   Hauteur    Largeur    Profondeur   Pronfondeur Presse-étoupe               116                           101      35
                                      avec poignée

      176      116           101          136     M20 & M25




      SCHEMAS DE RACCORDEMENT :




Branchement monophasé - 2P                              Branchement triphasé - 3P                               Branchement tétrapolaire - 4P
                                                                                                                     Triphasé + neutre

                                                    3, rue Jules Verne· Parc d'Activités Airspace - 33187 LE HAILLAN Cedex· FRANCE
                                                    Tél. 05 56 08 62 59 • Fax : 05 56 42 58 15 - www.cbm.fr • [email protected]

Technical Documents

(1)

Technical Document 2

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

CBM universal proximity switch for air conditioning applications, rated 16 to 32 A with 2/3/4 poles and IP66 protection. Operates at 50/60 Hz for reliable industrial control and switching duty.

Frequently Asked Questions

Where can I buy the CBM CLI58024 proximity switch worldwide?

3G Electric supplies the CBM CLI58024 as an authorized distributor. We handle full logistics, customs clearance, and deliver worldwide. Lead time on request — contact our team for availability and quotation.

What is the breaking capacity and pole configuration of the CLI58024?

The CBM CLI58024 offers breaking capacity from 16 to 32 A with selectable 2/3/4 pole configurations. IP66-rated housing ensures protection in industrial environments operating at 50/60 Hz.

Is the CBM CLI58024 suitable for air conditioning applications?

Yes, the CLI58024 is designed for air conditioning control and general industrial switching duty. Its IP66 protection, multi-pole design, and 16–32 A rating handle reliable modulating and on/off control in HVAC systems.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
