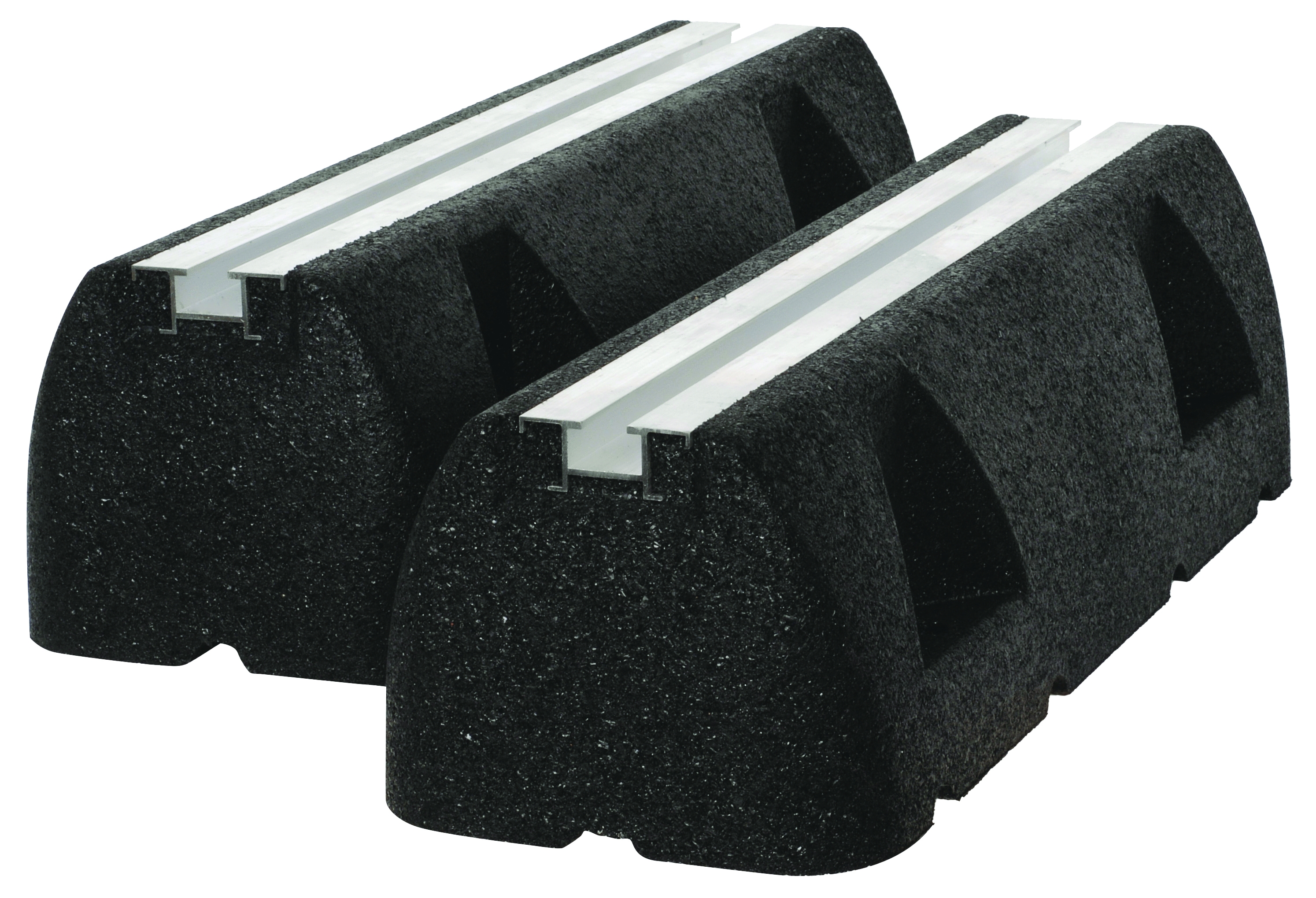

CBM Rubber supports SMARTLINE 400x130x95mm (the pair)

CBM SMARTLINE rubber supports are isolation mounts for external air conditioning and ventilation units. Constructed from recycled SBR rubber with embedded aluminum profile, each piece supports 180 kg load capacity…

SKU 3G-CBM-00908

Also listed as: CLI 04483 · CLI-04483

Brand

CBM

Item

Rubber supports SMARTLINE 400x130x95mm

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

material

recycled SBR rubber with embedded aluminum profile

application

external air conditioning units, ventilation units, roof-mounted installations

load capacity

180 kg per piece

Datasheet Content

LE HAILLAN, 01/01/2025

                                           CERTIFICAT


1. Code d’identification unique du type de produit :
            Le support en caoutchouc recyclé sélectionné 3G-CBM-00908, CLI04484

2. Lot de type d’identification ou tout autre élément permettant l’identification du produit
de construction tel que requis par l’article 11 (4) :
            3G-CBM-00908, CLI04484

3. Utilisation ou utilisations prévues du produit de construction conformément à la
spécification technique harmonisée applicable, telle que prévue par le fabricant :

  Support en caoutchouc pour utilisation externe pour groupes extérieurs de climatisation,
 unités de ventilation / conduits / pipelines et autres installations installées sur les toits plats
                         ou au sol sans fixation mécanique à la surface.

4. Nom, dénomination commerciale ou marque déposée et adresse de contact du fabricant,
selon le cas, et article 11 (2) :

                                     3G-CBM-00908, CLI04484
                                  COMPTOIR BINOCHE MICHEL
                                      3, rue Jules Verne
                                      33187 LE HAILLAN
                                     Tél. 05 56 08 62 59

5. Système ou systèmes d’évaluation et de vérification de la constance des performances du
produit de construction, tels que définis à l’annexe V du RPC (Règlement produits de
construction) :

                                             Système 4

6. Système ou systèmes d’évaluation et de vérification de la constance des performances du
produit de construction, tels que définis à l’annexe V du RCP (Règlement produits de
construction) :
1.      PN-EN 1177
2.      DIN EN 13501-1
3.      DIN53505
4.      EN 573-3

COMPTOIR BINOCHE MICHEL
3, rue Jules Verne
33187 LE HAILLAN
Tél. 05 56 08 62 59
Fax. 05 56 42 58 15
7. Organisme notifié : dans le cas d’une déclaration des performances concernant un produit
de construction pour lequel une évaluation technique européenne a été délivrée :
                                           N/A
8. Caractéristiques essentielles :
                                           N/A

9. Déclaration : La performance du produit identifié aux points 1 et 2 est conforme à la
performance déclarée au point 9. Cette déclaration de performance est délivrée sous la seule
responsabilité du fabricant identifiée au point 4.




 LE HAILLAN, 01.01.2025

     (lieu et date de délivrance)

                                                                   (signature)




   COMPTOIR BINOCHE MICHEL
   3, rue Jules Verne
   33187 LE HAILLAN
   Tél. 05 56 08 62 59
   Fax. 05 56 42 58 15
Rubber 400 - eco
                                                                                                                               3G-CBM-00908

                                                                       Product data:

                                                                       Product code: 3G-CBM-00908
                                                                       Dimension( LxWXH): 400x130x95
                                                                       Specification:
                                                                       The support is made of sorted recycling rubber SBR
                                                                       with embedded aluminum profile.
                                                                       Application:
                                                                       As support under the air conditioning units, ventilation
                                                                       ducts, pipelines and other installations.
Materials:

     •    sized granulated rubber (SBR rubber recycling),
     •    neutral polyurethane glue ,
     •    aluminum

Technical data and dimensions



                          Measure              Tolerance
   Dimension
                           [mm]                  [mm]
         L                  400                  -0 +5
         W                  130                   ±2
         H                    95                   ±2
                                                                                              3G-CBM-00908
         A                    90                   ±2
         B                   80,5                  ±2
         C                    80                   ±2
         C
         D                    80
                              30                   ±2
          E                   45                   ±2

                  Weight: 3,60kg ± 10%
                   Load: 180 kg / 1 pcs



All products Fame Foot must in fact be installed according to the manufacturer's roof systems. The manufacturer of PVC membranes should advise on
tendency to migration of plasticizers and define specific recommendations that should be taken into account during installation and which will
guarantee that the roof is not affected.




Page 1 / 1

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy CBM SMARTLINE 400x130x95 rubber supports worldwide?

3G Electric is an authorized distributor of CBM isolation mounts. We source SMARTLINE rubber supports to order with worldwide delivery. Lead time and logistics handling available on request via our website at www.3g-electric.net.

What is the load capacity of each CBM SMARTLINE rubber support?

Each CBM SMARTLINE support piece holds 180 kg maximum load. The pair (400x130x95 mm) is suitable for roof-mounted external air conditioning and ventilation units up to 360 kg total weight.

What material are CBM SMARTLINE rubber supports made from?

CBM SMARTLINE mounts are constructed from recycled SBR rubber with an embedded aluminum profile. This design provides vibration isolation and durability for outdoor HVAC installations on roofs and external mounting points.
