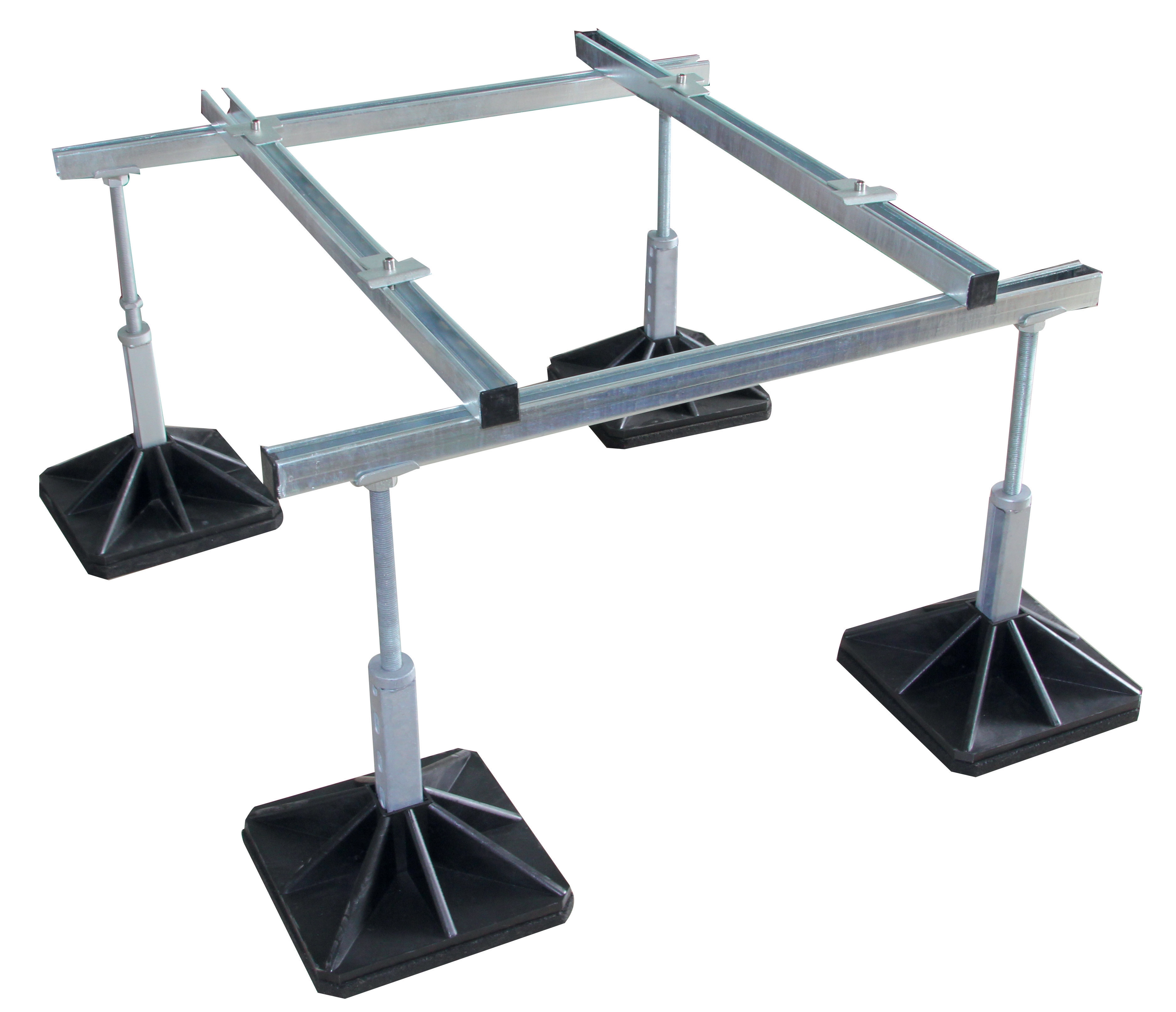

CBM Support heavy foot 1200x1000x400

CBM support heavy foot is an air conditioning equipment base designed for industrial HVAC installations, featuring 40×40 mm strut channels with a 2000 kg load capacity and adjustable height range of 300–460 mm…

SKU 3G-CBM-00907

Also listed as: CLI 04482 · CLI-04482

Brand

CBM

Item

Support heavy foot 1200x1000x400

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

color

silver/gray

material

half slot steel strut channel and PA66 plastic with rubber base

strut size

40×40 mm

load capacity

2000 kg

height adjustable

300–460 mm

surface treatment

hot dipped galvanizing

Datasheet Content

Support Heavy foot 3G-CBM-00907
                                                    1200 x 1000 x400

Matériel : Canal de support en acier à demi-fente et base en plastique PA66 et
           caoutchouc
Traitement de surface : Galvanisation à chaud

Couleur : Gris argent

      Modèle                            Poids net                Capacité de chargement

      1200*1000                           30 kg                         2000 kg

 Accessoires :

                              1-    4 pièces * connecteur (A) entre la jambe de force et l'équipement

                               2-   4 pièces * connecteur (B) entre les entretoises de haut en bas

Dimensions

                                                                             1- La taille de la jambe de force est de 40*40 mm.

                                                                             2- Manches extensibles en option.

                                                                             3- Hauteur réglable de 300 à 460 mm

Emballage ：2 * Boîte en carton individuelle pour chaque unité.
Technical document for modular base system
Article：modular base system

Material：            Half slot steel strut channel and plastic PA66 & rubber base

surface treatment : Hot dipped galvanizing
color :            silver/gray

Model                                        Net Weight                   Loading capacity

1200*1000                                     30.0kgs                        2000 kgs

Accessoiries :

                                             4 pcs * connector(A) between strut and quipment
                                 1-

                                 2-          4 pcs * connector(B) between struts up and down

Dimensions

                                                                                        1- Size of strut is 40*40 mm.
Package： 2 * Individual carton box for each unit.                                       2- Extendable sleeves as optional.
                                                                                        3- Height adjustable 300-460mm

Technical Documents

(2)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM CLI04482 support heavy foot worldwide?

Order the CBM CLI04482 directly from 3G Electric, your authorized distributor. We handle worldwide delivery, customs, and logistics to keep your HVAC projects on schedule.

What is the lead time and shipping process for the CLI04482?

Lead time and shipping details depend on your location and quantity. Contact 3G Electric for a quote and delivery timeline. We arrange customs clearance and logistics globally.

What load capacity does the CBM CLI04482 support heavy foot provide?

The CBM CLI04482 supports a maximum load of 2000 kg. It features 40×40 mm strut channels with adjustable height from 300–460 mm, suitable for rooftop and ground-level HVAC installations.
