CBMHVAC & Refrigeration

CBM Wall bracket 650

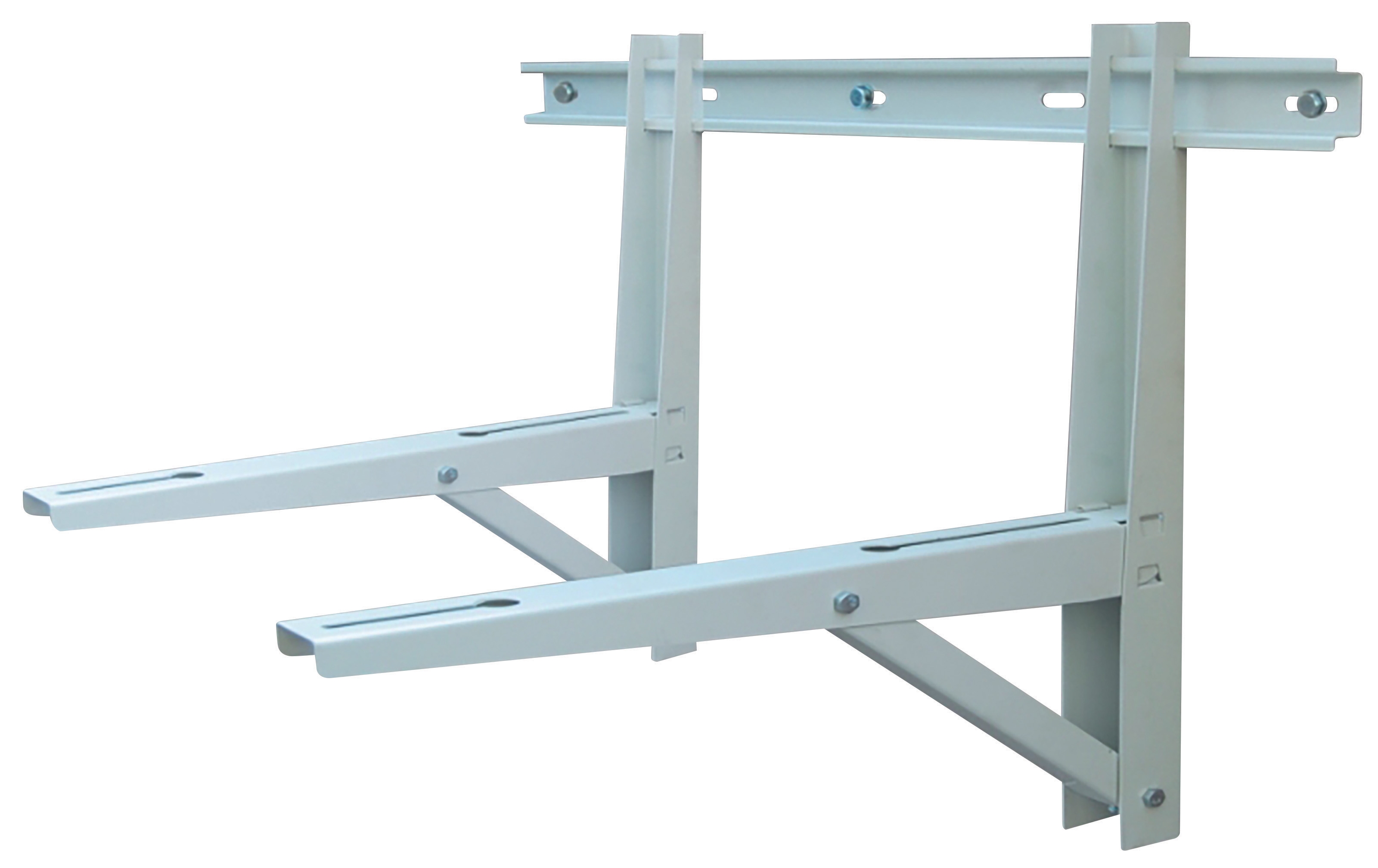

CBM Wall Bracket 650 is a steel air conditioning mounting bracket with 650 mm length and 250 kg load capacity, finished in epoxy paint beige. Ideal for securing AC units and HVAC equipment to building structures.

SKU 3G-CBM-00850

Also listed as: CLI 04414 · CLI-04414

Brand

CBM

Item

Wall bracket 650

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

finish

epoxy paint beige

length

650 mm

material

steel

load capacity

250 kg

Datasheet Content

SUPPORT MURAUX REGLABLES
                               CLI04408 à 14




                                 CARACTERISTIQUES
        • CLI04408 : L. 400mm - 400 x 365 x 780 - supporte 100 kg
        • CLI04410 : L. 450mm - 450 x 365 x 780 - supporte 120 kg
        • CLI04412 : L. 550mm - 550 x 465 x 800 - supporte 150 kg
        • 3G-CBM-00850 : L. 650mm - 650 x 600 x 900 - supporte 250 kg
        • CLI04413 : L.1000mm - 1000 x 600 x 900 - supporte 200 kg




                                    DESCRIPTION
   • Faciles à déplier et à monter, ces supports en acier sont traités anti-corrosion et
     recouverts d’une peinture époxy beige.
   • Ils sont livrés dans un emballage individuel quadri avec supports anti-vibrations et
     visserie.
   • Le niveau intégré sur la barre transversale permet une installation simple et rapide.




                                      UTILISATION
• Les accessoires inclus facilitent la pose pour la fixation murale, en toute sécurité de
  vos unités de climatisation.
• Emballage individuel compact = gain de place pour le transport et le stockage

Technical Documents

(1)

Technical Document 1

PDF Document

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM Wall Bracket 650 worldwide?

3G Electric is an authorized distributor of CBM brackets globally. We handle all logistics, customs clearance, and delivery. Contact us with your quantity and location for a quote and lead time on the CLI04414 650 mm bracket.

What is the lead time for the CBM Wall Bracket 650?

Lead time depends on stock availability and your destination. The CBM CLI04414 bracket (650 mm length, 250 kg capacity) is available to order. Contact 3G Electric with your location and required delivery date for a binding quote.

What load capacity and dimensions does the CBM Wall Bracket 650 have?

The CBM Wall Bracket 650 is 650 mm in length and rated for a 250 kg load capacity. It is constructed from steel with an epoxy paint beige finish, suitable for mounting AC units and HVAC equipment to building structures.

Used in

Common applications for CBM

Industrial boilers — CBM circulation pumps (mod. CM 30W) and solenoid valves (ELV series) for heating-loop control and pump staging.

Burner systems — CBM oil nozzles (FLU atomizer types), electrodes (ELC 200 mm), and solenoid coils (ELV 230V AC) for combustion ignition and flame supervision.

Plant maintenance and retrofit — CBM cable glands (CLI M25), motor couplings (ACC type D), and small-radius fittings (RAC 90°) for equipment reconfiguration and sensor integration.

Boiler water treatment — CBM chlorine test kits (DET free+combined) for feedwater and circulating-water quality monitoring in closed-loop systems.

Pump and motor assembly — CBM couplings, fittings, and cable glands for assembly and rewinding of industrial motors, circulation pumps, and auxiliary equipment.
