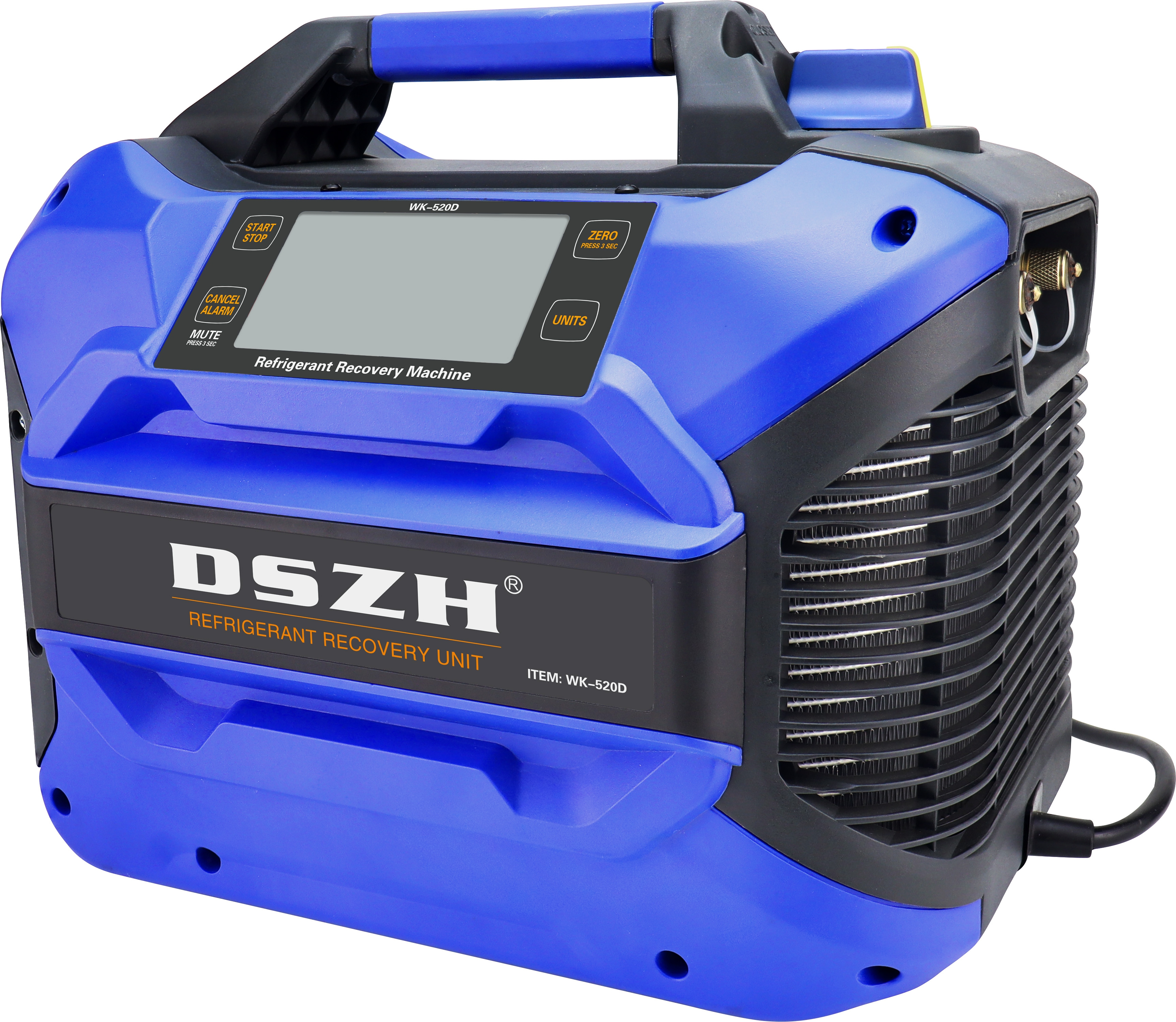

CBM R32 digital recovery station

The CBM WK520D is a digital recovery station designed for R32 air-conditioning refrigerant recovery operations. It features a dry, oil-free compressor with a maximum pressure of 38 bar and liquid recovery rates up to…

SKU 3G-CBM-00648

Also listed as: CLI 02302 · CLI-02302

Brand

CBM

Item

R32 digital recovery station

Local availability & support

Delivery: Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
Payment: Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.

Technical Specifications

CBM

type

Digital Recovery Station

model

WK520D

max pressure

38 bar (3800 kPa / 558 psi)

compressor type

Dry - Oil-free

operating temperature

0°C to 40°C

recovery rate vapor cat3

0.40 kg/min

recovery rate vapor cat4

0.50 kg/min

recovery rate vapor cat5

0.50 kg/min

recovery rate liquid cat3

3.30 kg/min

recovery rate liquid cat4

3.85 kg/min

recovery rate liquid cat5

3.85 kg/min

recovery rate push pull cat3

7.50 kg/min

recovery rate push pull cat4

8.50 kg/min

recovery rate push pull cat5

9.50 kg/min

Datasheet Content

STATION DE RÉCUPÉRATION


      STATION DE RÉCUPÉRATION NUMÉRIQUE
      Station de récupération portable conçue pour la récupération des gaz réfrigérants.
      Très compacte, elle est faite dans un boîtier en plastique design et robuste, anti-corrosion et anti-choc.
      Elle dispose d’un compresseur 1 CV à piston sec haute performance et d’un écran numérique simple
      d’utilisation. Permet la récupératjon de tous les fluides frigorigènes (CAT III, IV, et V) y compris le R32 et
      1234yf.




      CARACTÉRISTIQUES
                      Spécifications techniques                                                  3G-CBM-00648
                                                                             CAT Ill : R-12, R-l 34a, R-401 C, R-406A, R-500 - HFO-l 234yf
        Réfrigérants                              CAT IV : R-22, R-40 l A, R-401 B, R-4028, R-407(, R-407D, R-408A, R-409A, R-411 A, R-411 B, R-412A, R-502, R-509
                                                                           CAT V : R·402A, R·404A, R-407 A, R-4078, R-41 OA, R-507, R32
        Homologation                                                                                EN 35-421
        Alimentation                                                                          220-240 VAC 50/60 Hz
        Moteur                                                                                       1 CV - 750W
        Courant                                                                                       6A - 50Hz
        Type compresseur                                                                           Sec - Sans huile
        Pression maxi                                                                        38 bar/3800 kPa (558 psi)
        Vapeur                                                CA T III : 0,40 kg/min - CAT IV : 0,50 kg/min - CAT V : 0,50 kg/min CA T III : 3,30 kg/min
        Liquide                                                          CA T IV : 3,85 kg/min - CA T V : 3,85 kg/min CAT III : 7,50 kg/min
        Push / Pull                                                                 CA T IV : 8,50 kg/min - CAT V : 9,50 kg/min
        Température max.                                                                             0°C - 40°C
        Dimensions                                                                   375mm (L) x 250 mm (W) x 320 mm (H)
        Poids                                                                                           10 Kg



       LIBELLÉS                                                                                                                                       CODE CBM


       Station de récupération numérique                                                                                                              3G-CBM-00648
Déclaration de conformité EU
                                                        EU Declaration of Conformity

             CBM
             3 Rue Jules Verne
             Parc d’Activité Airspace
             33187 LE HAILLAN
             France

             Certifie que le produit suivant :

             Description :                              Station de récupération
             Marque commerciale :                       DSZH
             Modèle :                                   WK520D (3G-CBM-00648)


             Est testé en conformité à la norme :

             NF E35-421
             EN 61000-6-1 :2007
             EN 61000-6-3 :2007+A1 :2011/AC :2012
             EN 60204-1 :2006+A1 :2009+AC :2010


             Et est conforme aux directives suivantes :

             2014-35-EU
             2004/108/EC


                                                                                                                               Date : 17/05/2023




3, rue Jules Verne - Parc d'Activités Airspace - 33187 - LE HAILLAN Cedex - FRANCE - Tél. +33 (0)5 56 08 62 59 - Fax +33 (0)5 56 42 58 15 - www.cbm.fr- [email protected]
              SAS au capital de 90000 € - RC SIRET 465 201 853 00038 - identification TVA FR 29 465 201 853 - NAF 4669 B

Technical Documents

(3)

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

CBM Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

Frequently Asked Questions

Where can I buy the CBM WK520D R32 recovery station worldwide?

Order the CBM WK520D from 3G Electric, an authorized distributor. We handle worldwide delivery, customs clearance, and logistics for HVAC equipment. Lead time and shipping details available on request.

What are the liquid recovery rates for the CBM WK520D?

The CBM WK520D delivers up to 3.85 kg/min liquid recovery rate (Category 4) and 3.30 kg/min (Category 3). Vapor recovery rates range from 0.40 to 0.50 kg/min depending on refrigerant category.

What is the maximum operating pressure of the CBM WK520D recovery station?

The CBM WK520D features a maximum pressure of 38 bar (3800 kPa / 558 psi) with a dry, oil-free compressor. Operating temperature range is 0°C to 40°C, suitable for standard HVAC service environments.
