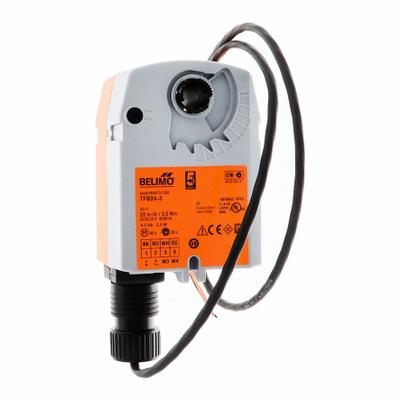

BELIMO Damper Actuator: Dampers, Floating Point, Spring Return, 22 in-lb, 24V AC/DC - Fail-Safe Actuators with Spring Return

BELIMOFail-Safe Actuators with Spring Return

BELIMO Damper Actuator: Dampers, Floating Point, Spring Return, 22 in-lb, 24V AC/DC

The BELIMO TFB24-3 is a fail-safe spring-return damper actuator with a floating-point control signal. It operates on 24V AC/DC with a 4VA power rating, provides 22 in-lb torque, and features a 0 to 95° stroke with…

SKU 3G-OTH-67159

Brand

BELIMO

Item

Damper Actuator: Dampers, Floating Point, Spring Return, 22 in-lb, 24V AC/DC

Category

Fail-Safe Actuators with Spring Return

Available to Order

Trade pricing by quote — replies within 24h

Qty

WhatsApp an engineer

No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.

Create free account →Log in

Worldwide Shipping

Air & sea freight

Datasheet on Request

Technical specs

1-Day Quote

Replies within 24h

Technical Specifications

BELIMO

Manufacturer Part Number

TFB24-3

Type

Floating Point, Spring Return, 22 in-lb, NEMA 2 / IP54

AC/DC

24V

Shaft Type

1/4" to 1/2"

Power Rating

4VA

Input Voltage

24V AC/DC

Output Signal

1 Auxiliary Switch

Plenum Rating

Plenum Rated

Stroke Degree

0 to 95°

Shaft Rotation

CW/CCW

Auxiliary Switch Included

Yes

Electrical Connection Type

Hardwired

For Use With Building Automation Systems

Not Building Automation System Compatible

View Full Spec Sheet

Technical Documents

No technical documents available for this product.

Request documentation →

Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.

Talk to an engineer

Ask a question

BELIMO Products

3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BELIMO TFB24-3 is a fail-safe spring-return damper actuator with a floating-point control signal. It operates on 24V AC/DC with a 4VA power rating, provides 22 in-lb torque, and features a 0 to 95° stroke with CW/CCW shaft rotation for 1/4" to 1/2" shafts. This plenum-rated actuator includes one auxiliary switch and is hardwired, but is not compatible with building automation systems.
