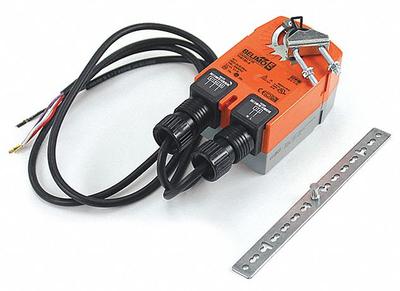

BELIMO Actuator: Dampers, On/Off, Spring Return, 22 in-lb, 100 to 240V AC, Hardwired - Fail-Safe Actuators with Spring Return
BELIMOFail-Safe Actuators with Spring Return

BELIMO Actuator: Dampers, On/Off, Spring Return, 22 in-lb, 100 to 240V AC, Hardwired

The BELIMO TFB120-S is a fail-safe spring-return damper actuator with on/off control, delivering 22 in-lb of torque over a 95° stroke with CW/CCW shaft rotation. It operates on 100 to 240V AC with a 2.5W power…

SKU 3G-OTH-67122

Brand
BELIMO
Item
Actuator: Dampers, On/Off, Spring Return, 22 in-lb, 100 to 240V AC, Hardwired
Category
Fail-Safe Actuators with Spring Return
Available to Order
Trade pricing by quote — replies within 24h
Qty
WhatsApp an engineer
No account needed — your quote request goes straight to our engineers. A free account lets you track quotes and re-order faster.
Worldwide Shipping
Air & sea freight
Datasheet on Request
Technical specs
1-Day Quote
Replies within 24h

Technical Specifications

BELIMO
Manufacturer Part Number
TFB120-S
Type
On/Off, Spring Return, 22 in-lb, Hardwired, NEMA 2 / IP42
AC
100 to 240V
Power Rating
2.5W
Input Voltage
100 to 240V AC
Stroke Degree
95°
Shaft Rotation
CW/CCW
Auxiliary Switch Included
Yes
Electrical Connection Type
Hardwired
For Use With Building Automation Systems
Building Automation System Compatible
View Full Spec Sheet

Technical Documents

No technical documents available for this product.
Request documentation →
Not sure this is the right part? Get a recommendation.

Need installation or engineering help?

Installation, commissioning, maintenance plans, system design, and bundled product + service quotes — one team handles the full scope.
Talk to an engineer

Ask a question

BELIMO Products
3G Electric (S) Pte. Ltd. — Singapore

Product Description

The BELIMO TFB120-S is a fail-safe spring-return damper actuator with on/off control, delivering 22 in-lb of torque over a 95° stroke with CW/CCW shaft rotation. It operates on 100 to 240V AC with a 2.5W power rating, features a hardwired electrical connection and an auxiliary switch, and is compatible with building automation systems.

Used in

Common applications for BELIMO
Commercial HVAC damper control — Belimo GMB24-SR proportional actuator for modulating air volume in VAV systems
Hydronic zone temperature regulation — Belimo Z3075Q-J+CQB24-3 3-way zone valve for radiant floor heating loops
Smoke management systems — Belimo TFB24-SR spring return actuator for fire damper closure on power loss
Industrial ventilation balancing — Belimo NMB24-SR non-spring return actuator for large duct dampers in factories
Chilled water valve actuation — Belimo Z2075Q-K+CQB24-3 2-way zone valve for fan coil unit control
Multi-purpose damper control — Belimo LF24-MFT MFT actuator with configurable signal for retrofit projects

BELIMO Products

3G Electric supplies BELIMO fail-safe actuators with spring return. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
