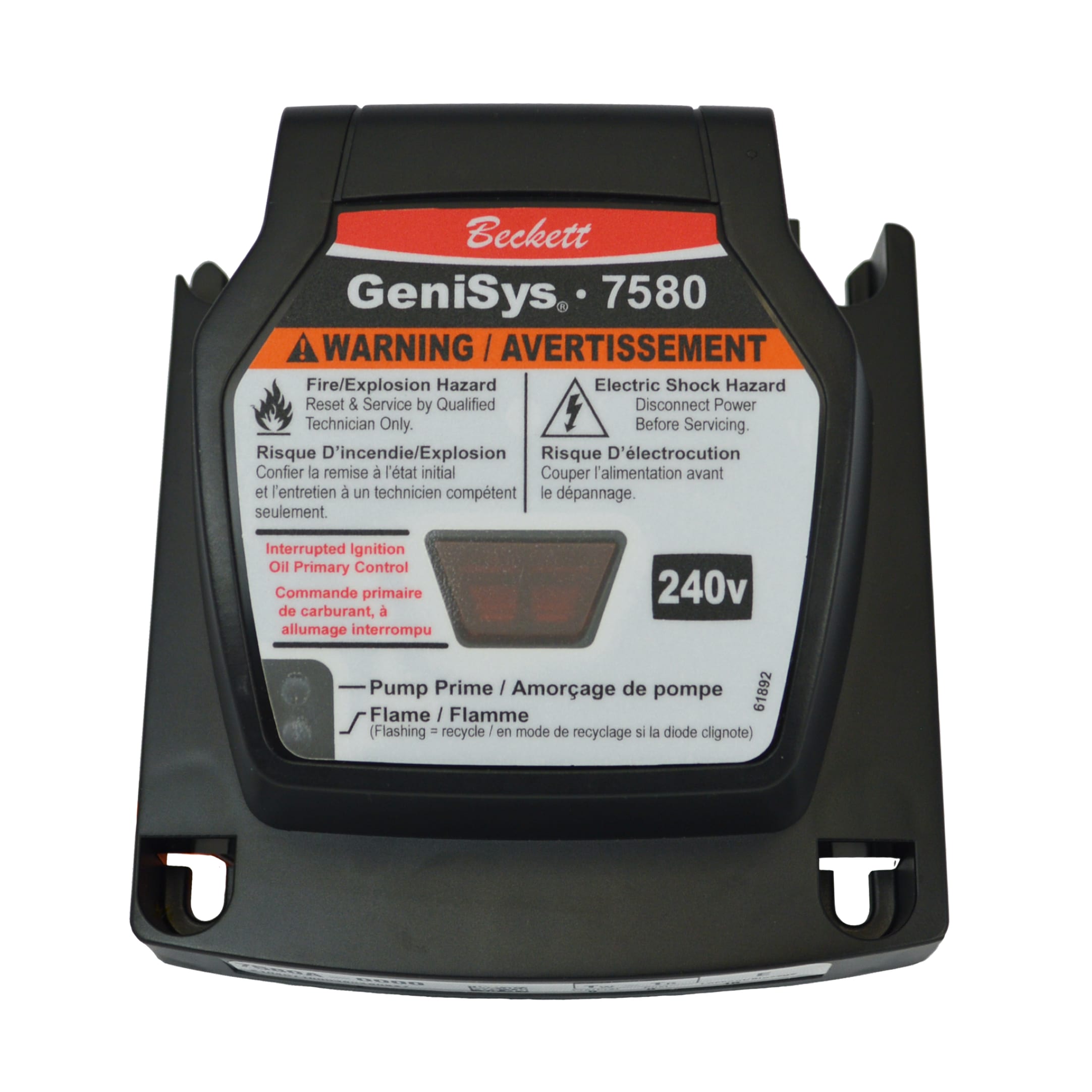

Beckett GeniSys® 7580 240V Oil Burner Control
Beckett GeniSys® 7580 is a 240V primary safety control for oil burners in industrial heating and pressure washing systems, featuring programmable ignition cycles and flame detection integration.
SKU 3G-BKT-00043
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Beckett GeniSys® 7580 is a 240V primary safety control for oil burners in industrial heating and pressure washing systems, featuring programmable ignition cycles and flame detection integration.
Frequently Asked Questions
Where can I buy a Beckett GeniSys 7580 control in your region?
3G Electric supplies the Beckett GeniSys 7580 240V oil burner control with delivery to your location. We handle customs documentation and logistics. Contact us for lead times and USD invoicing on this model (7580A0000 and variants).
What is the lead time for the Beckett 7580 control?
The Beckett GeniSys 7580 is available to order. Lead time depends on current stock and your delivery location within your region. 3G Electric coordinates all shipping and customs clearance. Request a quote for your specific timeline.
What is the igniter output rating on the Beckett GeniSys 7580?
The Beckett GeniSys 7580 provides 208/240 VAC igniter output rated at 3 A minimum power factor 0.7. It also includes a solenoid valve output of 208/240 VAC, 1 A at 0.7 PF minimum, with a 15-second lockout time for flame safety.
Key Features
- 240 VAC primary safety control for oil burner systems
- Interrupted ignition with 15-second automatic lockout
- Integrates with GeniSys® 7006U CAD cell flame detector
- Programmable pre-purge and post-purge timing settings
- Epoxy potted enclosure for moisture and environmental protection
- Stores diagnostic data from last 15 operating cycles
- Three status indicator lights for real-time monitoring
- Redundant motor relays with welded relay protection
- Technician pump prime mode for maintenance
- Compatible with GeniSys® Contractor Tool for configuration
- 18-month manufacturer warranty
- Suitable for agriculture, construction, and road maintenance applications
