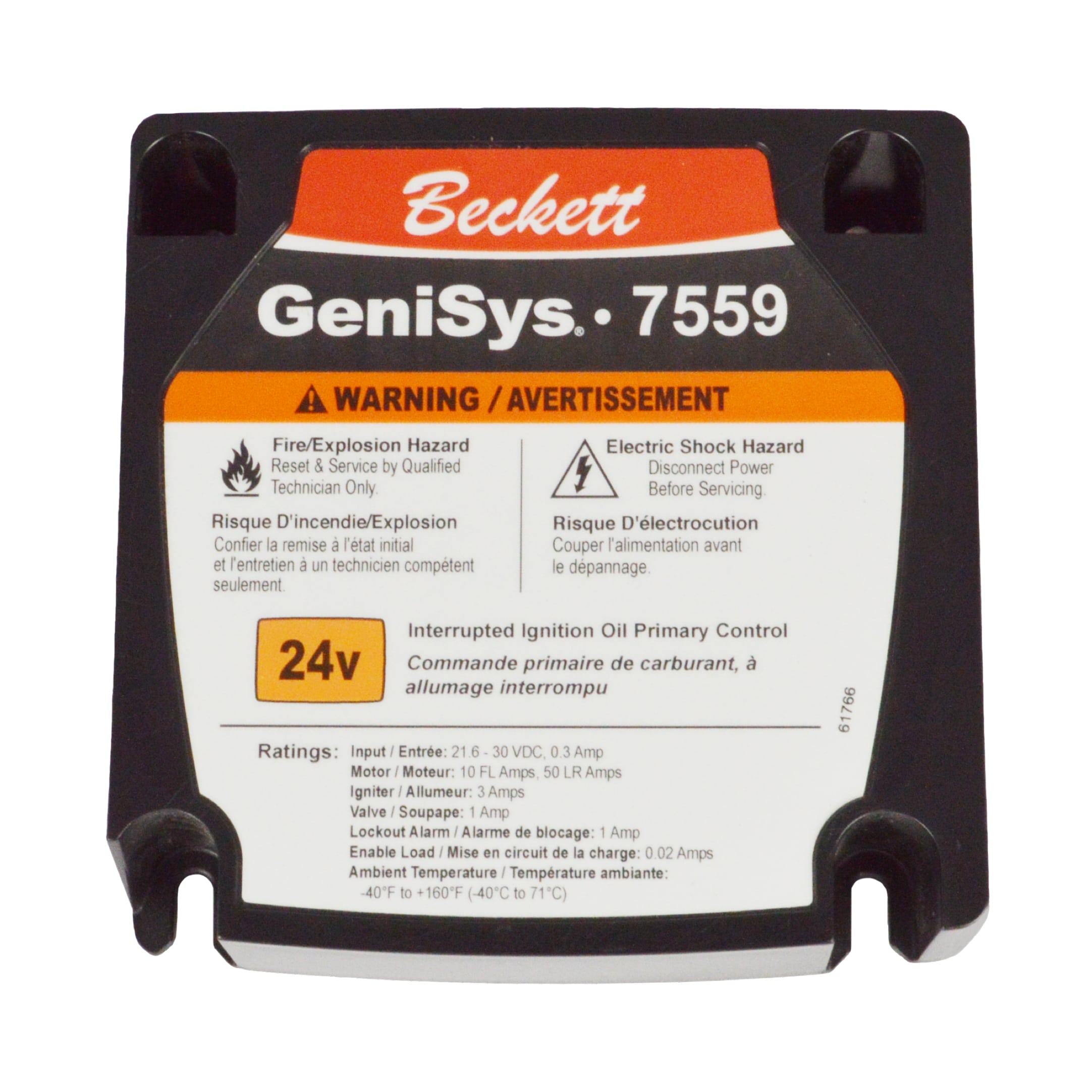

Beckett GeniSys® 7559 24V Oil Burner Control
Beckett GeniSys® 7559 is a 24V DC primary safety control designed to manage oil burners in mobile heating equipment like pressure washers and asphalt maintenance vehicles.
SKU 3G-BKT-00039
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Beckett GeniSys® 7559 is a 24V DC primary safety control designed to manage oil burners in mobile heating equipment like pressure washers and asphalt maintenance vehicles.
Frequently Asked Questions
Where can I buy a Beckett GeniSys 7559 control in your region?
3G Electric is an authorized distributor. We source the Beckett GeniSys 7559 to order with delivery to your location, your location, and throughout your region. We handle all customs documentation and logistics. Contact us for lead time and USD pricing.
What is the lead time for the Beckett 7559A0000 control?
Lead time varies by variant (7559A0000U, 7559P1530U, 7559P152MU, 7559P158MU). The Beckett GeniSys 7559 is available to order. Contact 3G Electric for specific delivery dates and freight terms to your location in your region.
What is the motor output and voltage rating of the Beckett GeniSys 7559?
The Beckett GeniSys 7559 outputs 24 Vdc at 10 full load amps (FLA) and 50 locked rotor amps (LRA). Input voltage is 24 Vdc nominal, operating range 21.6 to 30 Vdc. It includes 24 Vdc, 3 A igniter output and solenoid valve output for primary safety control of oil burners.
Key Features
- 24 VDC primary safety control for oil burners
- Epoxy potted construction resists high-moisture environments
- Interrupted ignition with 15-second lockout
- Programmable pre-purge and post-purge timing via GeniSys® Contractor Tool
- Redundant motor relays with welded relay protection
- Stores diagnostic data from last 15 operating cycles
- Alarm output for flame failure and lockout indication
- Valve-on delay and motor-off delay for chamber cooling
- Rated for high ambient temperature operation
- Fused circuit protection
- Compatible with GeniSys® CAD Cell Flame Detector Kit 7006U
