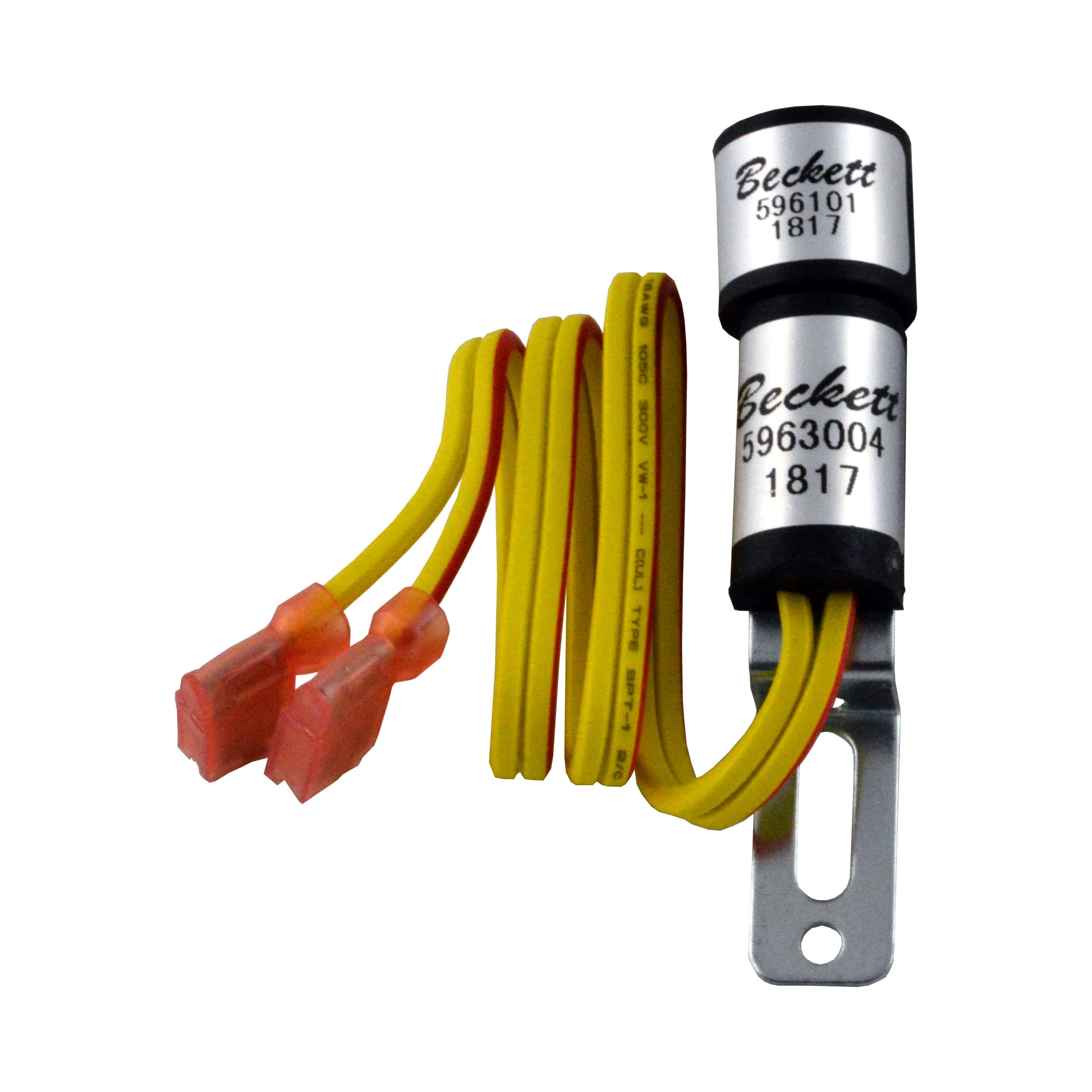

Beckett GeniSys® CAD Cell Flame Detector Kit | 7006U
Beckett GeniSys CAD Cell flame detector kit for oil burners. Light-sensitive safety control that monitors flame presence in residential and light commercial heating systems with fast response time and simple two-wire…
SKU 3G-BKT-00023
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Beckett GeniSys CAD Cell flame detector kit for oil burners. Light-sensitive safety control that monitors flame presence in residential and light commercial heating systems with fast response time and simple two-wire connection.
Frequently Asked Questions
Where can I order the Beckett GeniSys 7006U flame detector in your region?
Order from 3G Electric. We source and deliver the complete Beckett GeniSys CAD Cell kit to your location, your location, and nationwide. Lead time on request. 3G Electric handles all customs import documentation and USD invoicing.
What wire lengths are available for the Beckett 7006U flame detector?
Six variants with Type A or Type B CAD cell: 6.0", 12.0", 14.0", 18.0", and 54.0" wire lengths ±0.5". All use two-wire connection for simple retrofit into residential and light commercial oil burner systems.
What is the maximum ambient temperature for the Beckett GeniSys CAD cell?
Contact 3G Electric for full thermal specifications and application matching. We provide technical datasheets and lead-time quotes for all Beckett heating control products, including temperature-rated variants for your installation site.
Key Features
- Cadmium sulfide photoconductive flame detection technology
- Fast response time for flame failure detection
- Simple two-wire connection to primary safety controls
- Compatible with Beckett 7505 and multiple Honeywell control models
- High resistance in darkness, low resistance in light presence
- Suitable for furnaces, boilers, domestic hot water tanks, pressure washers
- Maximum ambient operating temperature: 140°F (60°C)
- Plug-in light-sensitive cell design with direct flame line-of-sight installation
- Multiple wire length configurations available (6" to 54")
- Requires trained service technician installation
