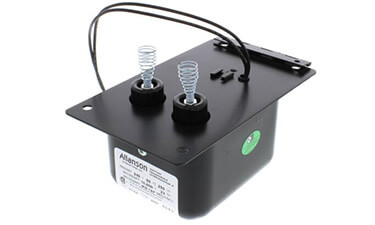

Allanson 2744-653 Ferromagnetic Ignition Transformer for Weil Mclain
The Allanson 3G-OTH-03203 is a ferromagnetic ignition transformer from the Small Can Series, designed for the Weil Mclain QB180 burner. It operates on 240V at 60Hz input, delivering 10000 Volt secondary output with a…
SKU 3G-OTH-03203
Also listed as: 2744653 · 2744 653
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 3G-OTH-03203 is a ferromagnetic ignition transformer from the Small Can Series, designed for the Weil Mclain QB180 burner. It operates on 240V at 60Hz input, delivering 10000 Volt secondary output with a 23mA current, and features a 1/4" Push On HV terminal and Mid Point Grounding.
Frequently Asked Questions
What is the Allanson 2744-653 ferromagnetic ignition transformer used for?
The Allanson 2744-653 is a ferromagnetic ignition transformer designed for constant-duty ignition in commercial and industrial oil burners, specifically the Weil Mclain QB180. It provides a reliable 10,000-volt secondary output to ignite fuel oil in heating systems.
What are the specifications of the Allanson 2744-653 ignition transformer?
The Allanson 2744-653 operates at 240 V input, 60 Hz, with a secondary voltage of 10,000 volts and 23 mA short-circuit current. It features mid-point grounding, a 1/4-inch push-on HV terminal, and a small can size. Operating temperature range is -30 to +40 °C.
Where to buy the Allanson 2744-653 ignition transformer in Singapore?
3G Electric supplies the Allanson 2744-653 ferromagnetic ignition transformer to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Weil Mclain-compatible transformer.
How to install the Allanson 2744-653 ignition transformer?
Install the Allanson 2744-653 by mounting it securely and connecting the 240 V primary supply. Attach the 1/4-inch push-on HV terminal to the burner electrode. Ensure the loading air gap is set between 1/8 and 3/16 inches. Follow the Weil Mclain burner manual for specific wiring.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson ignition transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
