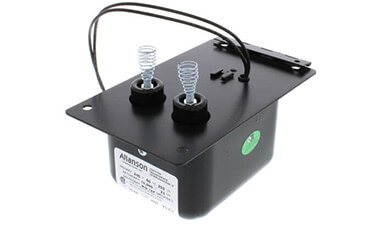

Allanson 2744-589 Ferromagnetic Ignition Transformer for Grimsby
The Allanson 3G-OTH-03196 is a ferromagnetic ignition transformer designed for Grimsby burners, featuring a 240V input at 60Hz, 23mA current, and a secondary voltage of 10,000 volts. It is a Small Can Series unit…
SKU 3G-OTH-03196
Also listed as: 2744589 · 2744 589
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 3G-OTH-03196 is a ferromagnetic ignition transformer designed for Grimsby burners, featuring a 240V input at 60Hz, 23mA current, and a secondary voltage of 10,000 volts. It is a Small Can Series unit with mid-point grounding, an end hinge, and a compression cone spring HV terminal.
Frequently Asked Questions
What is the Allanson 2744-589 Ferromagnetic Ignition Transformer used for?
The Allanson 2744-589 is a ferromagnetic ignition transformer designed for constant-duty ignition in commercial and industrial oil burners, specifically for Grimsby burner models. It provides a reliable 10,000 V secondary voltage at 23 mA to ignite fuel oil in heating and process applications.
What are the specifications of the Allanson 2744-589?
The Allanson 2744-589 operates at 240 V input, 60 Hz, with a secondary voltage of 10,000 V and 23 mA short-circuit current. It features a small can size, mid-point grounding, compression cone spring HV terminal, and end hinge. Storage temperature range is -40 to +80 °C, operating -30 to +40 °C.
Where to buy the Allanson 2744-589 in Singapore?
3G Electric supplies the Allanson 2744-589 Ferromagnetic Ignition Transformer to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Grimsby-compatible transformer.
How to install the Allanson 2744-589 ignition transformer?
Install the Allanson 2744-589 by mounting it securely with the end hinge, ensuring the compression cone spring HV terminal connects properly to the Grimsby burner. Verify input voltage is 240 V at 60 Hz and maintain a loading air gap of 1/8 to 3/16 inches. Follow standard safety procedures for high-voltage equipment.
