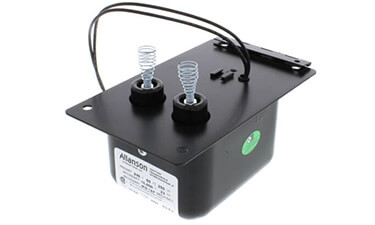

Allanson 2744-409 Ferromagnetic Ignition Transformer for Abc, Crane
The Allanson 2744-409 is a ferromagnetic ignition transformer from the Small Can Series, designed for ABC and Crane burners. It operates on 240V at 60Hz, drawing 23mA, with a secondary voltage of 10,000 volts…
SKU 3G-OTH-03187
Also listed as: 2744409 · 2744 409
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 2744-409 is a ferromagnetic ignition transformer from the Small Can Series, designed for ABC and Crane burners. It operates on 240V at 60Hz, drawing 23mA, with a secondary voltage of 10,000 volts, mid-point grounding, and a zinc-plated button HV terminal.
Frequently Asked Questions
What is the Allanson 2744-409 ferromagnetic ignition transformer used for?
The Allanson 2744-409 is a ferromagnetic ignition transformer designed for constant-duty ignition in commercial and industrial oil burners, specifically ABC and Crane burner models. It provides a reliable 10,000-volt secondary output at 23 mA to ignite fuel oil in heating systems.
What are the specifications of the Allanson 2744-409 ignition transformer?
The Allanson 2744-409 operates at 240 V input, 60 Hz, with a secondary voltage of 10,000 volts and 23 mA short-circuit current. It features mid-point grounding, a zinc-plated button HV terminal, and a small can size. Operating temperature range is -30 to +40 °C.
Where to buy the Allanson 2744-409 ignition transformer in Singapore?
3G Electric supplies the Allanson 2744-409 ferromagnetic ignition transformer to Singapore. We source and deliver this OEM component, handling logistics and customs clearance for your facility. Contact us for pricing and lead time on this ABC/Crane burner transformer.
How to install the Allanson 2744-409 ignition transformer?
Install the Allanson 2744-409 by mounting it securely on the burner, connecting the 240 V input to the primary terminals, and attaching the high-voltage lead to the spark electrode. Ensure the mid-point ground is properly bonded. Follow the burner manufacturer's wiring diagram and safety procedures.
