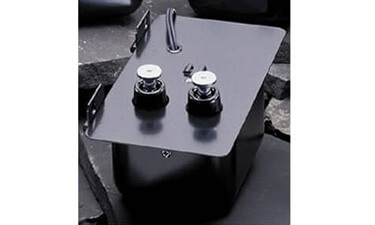

Allanson 2730-620 Ferromagnetic Ignition Transformer for Wayne
The Allanson 2730-620 is a ferromagnetic ignition transformer for Wayne E burners, featuring a small can series design with side hinge and large spring contact HV terminal. It operates on 110V at 50Hz, delivering…
SKU 3G-OTH-03166
Also listed as: 2730620 · 2730 620
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 2730-620 is a ferromagnetic ignition transformer for Wayne E burners, featuring a small can series design with side hinge and large spring contact HV terminal. It operates on 110V at 50Hz, delivering 10,000V secondary voltage with 23mA current and mid-point grounding.
Frequently Asked Questions
What is the Allanson 2730-620 ferromagnetic ignition transformer used for?
The Allanson 2730-620 is a ferromagnetic ignition transformer designed for constant-duty ignition in commercial and industrial oil burners, specifically for Wayne E series burners. It provides a reliable 10,000-volt secondary output at 23 mA to ignite fuel oil in heating systems.
What are the specifications of the Allanson 2730-620 ignition transformer?
The Allanson 2730-620 has an input voltage of 110 V at 50 Hz, secondary voltage of 10,000 volts RMS, and secondary short circuit current of 23 mA. It features mid-point grounding, a side hinge, large spring contact HV terminal, and operates from -30 °C to +40 °C.
Where to buy the Allanson 2730-620 in Singapore?
You can source the Allanson 2730-620 ferromagnetic ignition transformer through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Wayne-compatible transformer.
How to install the Allanson 2730-620 ignition transformer on a Wayne burner?
Ensure power is off before installation. Mount the transformer using the side hinge, connect the primary leads to 110 V, 50 Hz supply, and attach the large spring contact HV terminal to the burner's ignition electrode. Maintain an air gap of 1/8 to 3/16 inches for proper spark.
