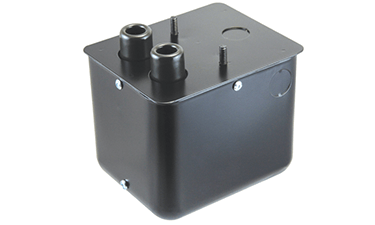

Allanson 2714-655-SF-G Ferromagnetic Ignition Transformer
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
SKU 3G-OTH-03241
Also listed as: 2714655 SFG · 2714655-SFG
Local availability & support
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
Frequently Asked Questions
What is the Allanson 2714-655-SF-G ignition transformer used for?
The Allanson 2714-655-SF-G is a ferromagnetic ignition transformer designed for constant duty in commercial, residential, and industrial oil-fired applications. It provides a reliable ignition source for oil burners, delivering a secondary voltage of 12,000 V at 60 Hz with a double-pole, mid-point ground configuration.
What are the specifications of the Allanson 2714-655-SF-G?
The Allanson 2714-655-SF-G has a double-pole, mid-point ground design. It operates at 120 V input, 60 Hz, with a secondary voltage of 12,000 V RMS and a secondary short circuit current of 20 mA. The primary VA rating is 275, and the loading air gap is 1/8 to 3/16 inches.
Where to buy the Allanson 2714-655-SF-G in Singapore?
3G Electric supplies the Allanson 2714-655-SF-G ferromagnetic ignition transformer to customers in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this model.
How to install the Allanson 2714-655-SF-G ignition transformer?
Install the Allanson 2714-655-SF-G by mounting it securely near the oil burner, ensuring proper grounding per the mid-point ground specification. Connect the primary to a 120 V, 60 Hz supply and the secondary to the spark electrodes. Maintain a loading air gap of 1/8 to 3/16 inches for optimal performance.
Used in
Common applications for AllansonAllanson Products
3G Electric supplies Allanson ignition transformers. We supply genuine products with in-stock availability on common SKUs, technical documentation, commissioning support, and warranty service — worldwide.
