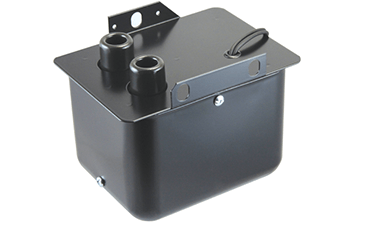

Allanson 2714-633 Ferromagnetic Ignition Transformer for Carlin
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
SKU 3G-OTH-03239
Also listed as: 2714633 · 2714 633
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s Double Pole ferromagnetic transformers are designed for constant duty and provide the most reliable ignition source for commercial, residential and industrial oil applications.
Frequently Asked Questions
What is the Allanson 2714-633 ignition transformer used for?
The Allanson 2714-633 is a ferromagnetic ignition transformer designed for constant duty in commercial, residential, and industrial oil burners. It is specifically configured for Carlin burners, providing a reliable 12,000 V secondary voltage at 60 Hz to ignite fuel oil in heating systems.
What are the specifications of the Allanson 2714-633?
The Allanson 2714-633 is a double-pole, mid-point ground transformer with a 120 V input at 60 Hz. It delivers 12,000 V secondary RMS at 20 mA short-circuit current, with a 275 VA rating. Operating temperature range is -30 to +40 °C, and it features an internal junction box with Rajah connectors.
Where to buy the Allanson 2714-633 in Singapore?
3G Electric supplies the Allanson 2714-633 ignition transformer to Singapore. We source and deliver this model for Carlin oil burners, handling logistics, customs clearance, and local delivery. Contact us for pricing and lead time on your order.
How to install the Allanson 2714-633 ignition transformer?
Install the Allanson 2714-633 by mounting it securely and connecting the 120 V primary supply to the internal junction box. Ensure the Rajah connectors mate properly with the burner's high-voltage terminals. Follow Allanson's guidelines for air gap loading of 1/8 to 3/16 inches and verify grounding per local codes.
