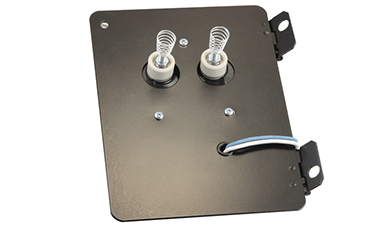

Allanson 2280-637 Electronic Ignitor for Wayne
Allanson’s electronic ignitors are made from unbreakable fire-retardant composite and are 4 times smaller and 1/10th the weight of Iron Core transformers. The 2280 Ignitor is available with a variety of mounting…
SKU 3G-OTH-03110
Also listed as: 2280637 · 2280 637
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
Allanson’s electronic ignitors are made from unbreakable fire-retardant composite and are 4 times smaller and 1/10th the weight of Iron Core transformers. The 2280 Ignitor is available with a variety of mounting plates and rates 230 Volts. (Also available in 12 Vdc and 120 Volt)
Frequently Asked Questions
What is the Allanson 2280-637 electronic ignitor used for?
The Allanson 2280-637 electronic ignitor is designed for constant-duty ignition in oil burners, specifically for Wayne FH burner models. It provides a reliable spark to ignite fuel oil in residential and commercial heating systems, replacing heavier iron-core transformers with a compact, fire-retardant composite unit.
What are the specifications of the Allanson 2280-637 ignitor?
The Allanson 2280-637 operates at 240 V input voltage, 50/60 Hz, with a secondary voltage of 17.5 kV peak and secondary short-circuit current of 28 mA. It has double-pole, mid-point grounding, a side hinge, and a large spring contact HV terminal. Input current is 2.5 A at 87 VA.
Where to buy the Allanson 2280-637 in Singapore?
You can source the Allanson 2280-637 electronic ignitor through 3G Electric in Singapore. We supply this component for Wayne oil burners and handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on orders.
How to install the Allanson 2280-637 ignitor on a Wayne burner?
To install the Allanson 2280-637, first disconnect power. Mount the ignitor using the appropriate plate for your Wayne FH burner, ensuring the side hinge aligns. Connect the 240 V input leads and secure the large spring contact HV terminal to the electrode. Verify the loading air gap is between 1/16 and 3/16 inch before restoring power.
