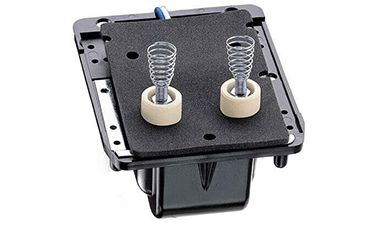

Allanson 2280-653 Electronic Ignitor for Weil Mclain
The Allanson 2280-653 is an electronic ignitor for Weil McLain QB 180 oil burners. It operates on 240V input at 50/60Hz, delivering a 17.5 kVpk secondary voltage with double-pole, mid-point grounding and 45mA…
SKU 3G-OTH-03111
Also listed as: 2280653 · 2280 653
Local availability & support
- Delivery
- Worldwide DHL shipping from Singapore; 7–14 business days door-to-door for most destinations.
- Payment
- Invoicing in USD. Bank transfer (SWIFT) and corporate PO accepted.
Need installation or engineering help?
Ask a question
Product Description
The Allanson 2280-653 is an electronic ignitor for Weil McLain QB 180 oil burners. It operates on 240V input at 50/60Hz, delivering a 17.5 kVpk secondary voltage with double-pole, mid-point grounding and 45mA current. The ignitor features a 1/4" push-on HV terminal, supporting reliable ignition in industrial oil-fired systems.
Frequently Asked Questions
What is the Allanson 2280-653 electronic ignitor used for?
The Allanson 2280-653 electronic ignitor is designed for constant-duty ignition of oil burners, specifically Weil-McLain QB 180 burners. It provides a reliable 17.5 kVpk secondary voltage to ignite fuel oil in residential and commercial heating systems.
What are the specifications of the Allanson 2280-653 ignitor?
The Allanson 2280-653 is a double-pole, mid-point ground ignitor with a 240 V input voltage, 45 mA secondary short-circuit current, and 17.5 kVpk secondary voltage. It operates at 50/60 Hz, with an operating temperature range of -30 to +40 °C and 90% relative humidity.
Where to buy the Allanson 2280-653 in Singapore?
You can source the Allanson 2280-653 electronic ignitor through 3G Electric in Singapore. We handle logistics, customs clearance, and delivery to your facility. Contact us for pricing and lead time on this Weil-McLain compatible ignitor.
How to install the Allanson 2280-653 ignitor on a Weil-McLain burner?
Ensure power is off before installation. Mount the ignitor securely, connect the 240 V primary supply, and attach the 1/4" push-on HV terminal to the burner electrode. Maintain a 1/16 to 3/16 inch air gap. Follow the burner manufacturer's wiring diagram for correct polarity.
